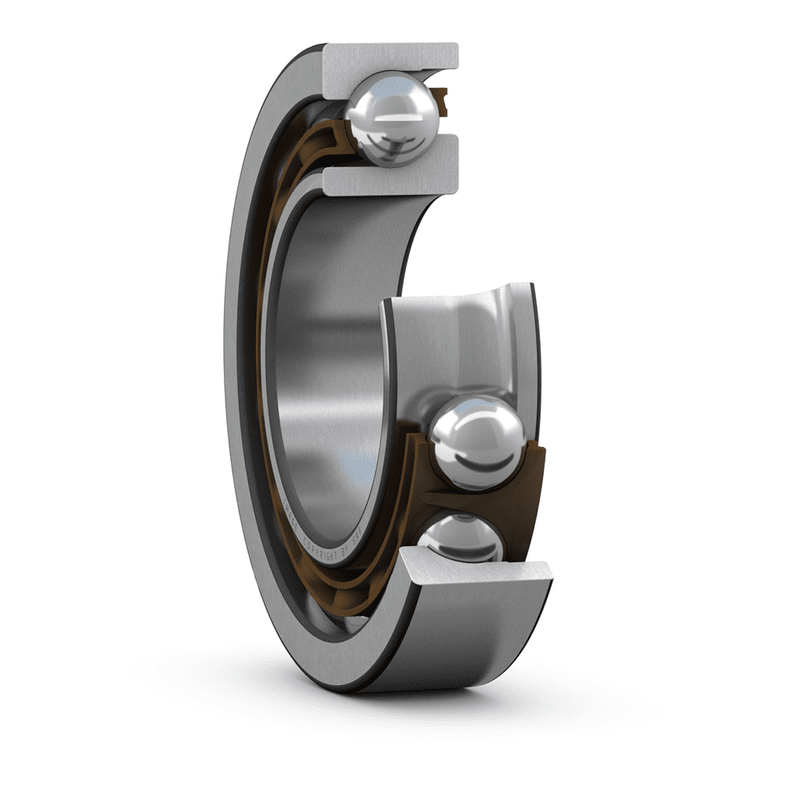

Angular contact ball bearings, single row ALS32 ABP

SKU:ANG000029
Angular contact ball bearings, single row ALS32 ABP
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - ALS 32 ABP

DIMENSIONS

d
101.6 mm
D
184.15 mm
B
31.75 mm
d1
≈ 124.7 mm
d2
≈ 115.13 mm
D1
≈ 155.25 mm
a
41 mm
r1,2
min. 3.2 mm
r3,4
min. 1.6 mm
Abutment dimensions - ALS 32 ABP

ABUTMENT DIMENSIONS

da
min. 111.76 mm
Da
max. 172.97 mm
Db
max. 174 mm
ra
max. 3.2 mm
rb
max. 1.5 mm

CALCULATION DATA

Basic dynamic load rating C
159 kN
Basic static load rating C0
143 kN
Fatigue load limit Pu
5.1 kN
Reference speed
4 500 r/min
Limiting speed
4 500 r/min
Calculation factor A
0.065
Calculation factor kr
0.1
Calculation factor e
0.57
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.43
Calculation factor Y0
0.42
Calculation factor Y2
1
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
3.15 kg
