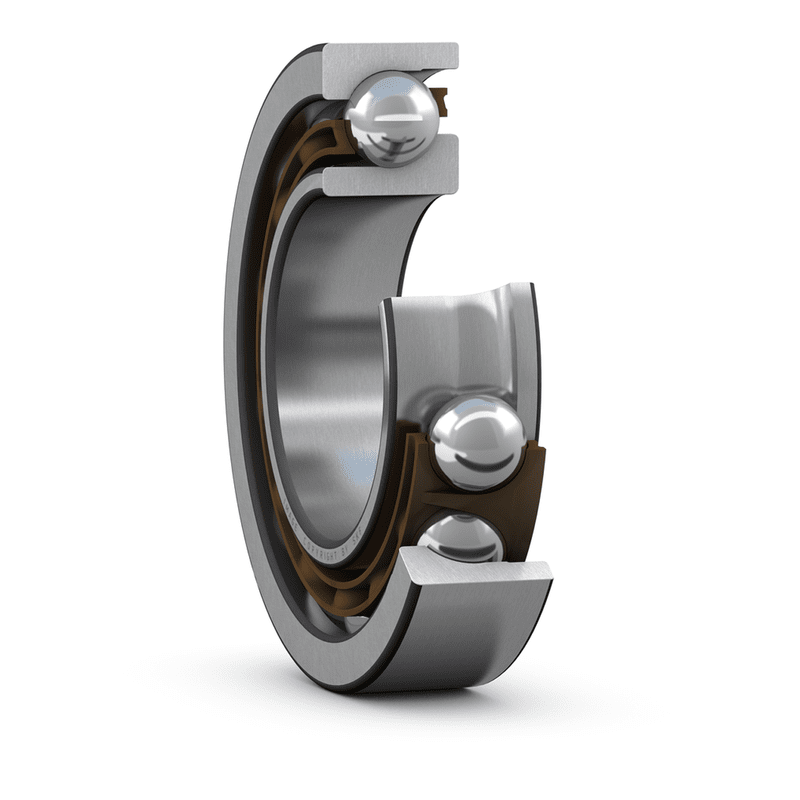

Angular contact ball bearings, single row AMS22 ABP
SKU:ANG000030
Angular contact ball bearings, single row AMS22 ABP
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
69.85 mm
|
|
|---|---|---|
| D |
158.75 mm
|
|
| B |
34.925 mm
|
|
| d1 |
≈ 94.2 mm
|
|
| d2 |
≈ 84.35 mm
|
|
| D1 |
≈ 125.7 mm
|
|
| a |
37 mm
|
|
| r1,2 |
min. 3.2 mm
|
|
| r3,4 |
min. 1.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 81.03 mm
|
|
|---|---|---|
| Da |
max. 147.57 mm
|
|
| Db |
max. 149 mm
|
|
| ra |
max. 3.2 mm
|
|
| rb |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
138 kN
|
|---|---|---|
| Basic static load rating | C0 |
104 kN
|
| Fatigue load limit | Pu |
4.15 kN
|
| Reference speed |
6 000 r/min
|
|
| Limiting speed |
6 000 r/min
|
|
| Calculation factor | A |
0.038
|
| Calculation factor | kr |
0.1
|
| Calculation factor | e |
0.57
|
| Calculation factor | X |
0.43
|
|---|---|---|
| Calculation factor | Y0 |
0.42
|
| Calculation factor | Y2 |
1
|
| Calculation factor | X |
0.57
|
|---|---|---|
| Calculation factor | Y0 |
0.52
|
| Calculation factor | Y1 |
0.55
|
| Calculation factor | Y2 |
0.93
|
MASS
| Mass bearing |
3.6 kg
|
|---|
