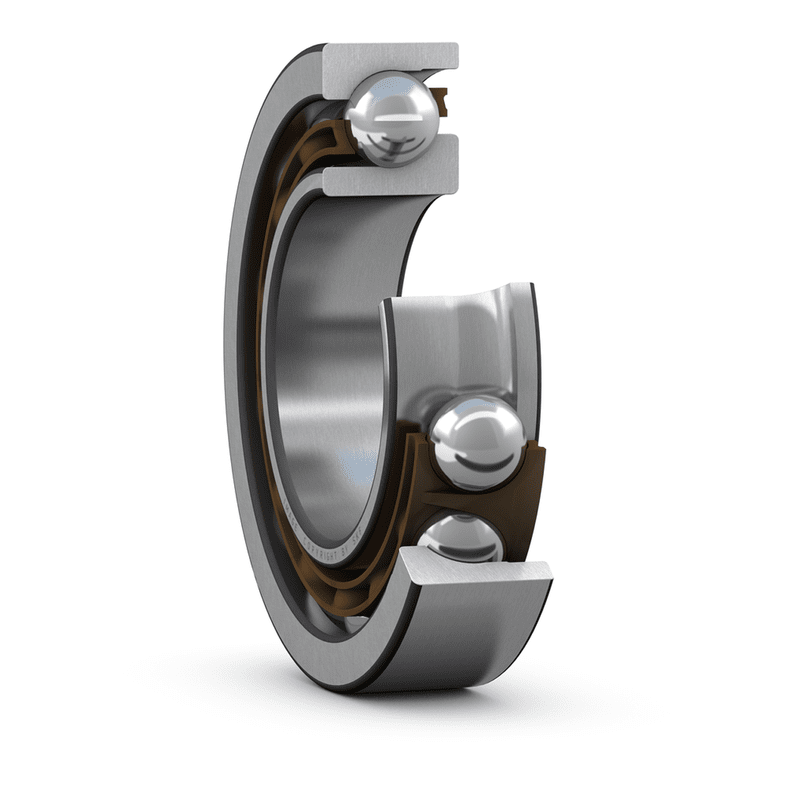

Angular contact ball bearings, single row ALS28

SKU:ANG000036
Angular contact ball bearings, single row ALS28
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - ALS 28 ABP

DIMENSIONS

d
88.9 mm
D
165.1 mm
B
28.575 mm
d1
≈ 111.5 mm
d2
≈ 103 mm
D1
≈ 138.5 mm
a
37 mm
r1,2
min. 3.2 mm
r3,4
min. 1.6 mm
Abutment dimensions - ALS 28 ABP

ABUTMENT DIMENSIONS

da
min. 100.01 mm
Da
max. 153.92 mm
Db
max. 155 mm
ra
max. 3.2 mm
rb
max. 1.5 mm

CALCULATION DATA

Basic dynamic load rating C
127 kN
Basic static load rating C0
112 kN
Fatigue load limit Pu
4.25 kN
Reference speed
5 300 r/min
Limiting speed
5 000 r/min
Calculation factor A
0.04
Calculation factor kr
0.1
Calculation factor e
0.57
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.43
Calculation factor Y0
0.42
Calculation factor Y2
1
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
2.89 kg
