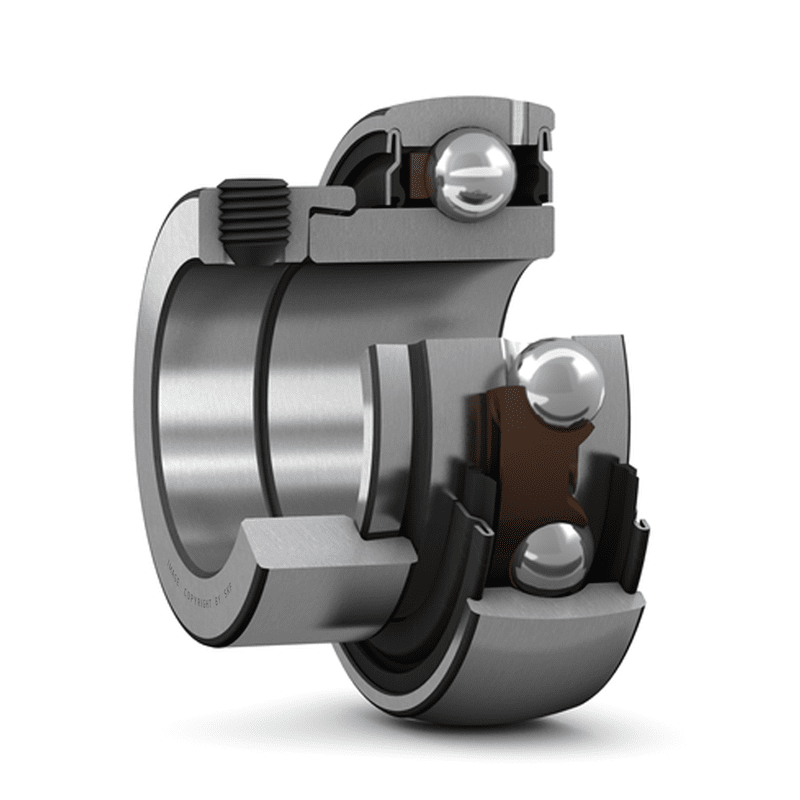

Description
Technical specification
DIMENSIONS
| d |
60 mm
|
|
|---|---|---|
| D |
110 mm
|
|
| B1 |
52.6 mm
|
|
| B |
36.7 mm
|
|
| C |
26 mm
|
|
| d1 |
≈ 75.64 mm
|
|
| d2 |
82 mm
|
|
| B4 |
7.95 mm
|
|
| r1,2 |
min. 1.5 mm
|
|
| s1 |
39.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
52.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
36 kN
|
| Fatigue load limit | Pu |
1.53 kN
|
| Limiting speed1) |
3 400 r/min
|
|
| Calculation factor | f0 |
14
|
MASS
| Mass bearing |
1.35 kg
|
|---|
MOUNTING INFORMATION
| Set screw | G2 |
M10x1
|
|---|---|---|
| Hexagonal key size for set screw | N |
5 mm
|
| Recommended tightening torque for set screw |
16.5 N·m
|
