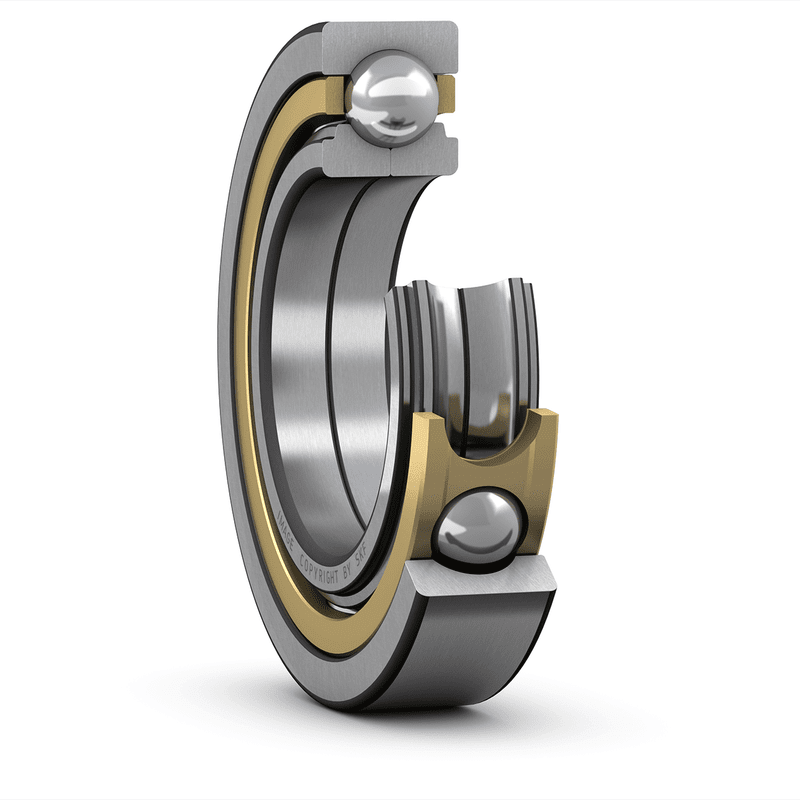

Angular contact ball bearings, four-point contact ball bearings QJ310MA/C2L
SKU:BEA001463
Angular contact ball bearings, four-point contact ball bearings QJ310MA/C2L
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
50 mm
|
|
|---|---|---|
| D |
110 mm
|
|
| B |
27 mm
|
|
| d1 |
≈ 65 mm
|
|
| D1 |
≈ 90 mm
|
|
| a |
56 mm
|
|
| r1,2 |
min. 2 mm
|
ABUTMENT DIMENSIONS
| da |
min. 61 mm
|
|
|---|---|---|
| Da |
max. 99 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
118 kN
|
|---|---|---|
| Basic static load rating | C0 |
100 kN
|
| Fatigue load limit | Pu |
4.25 kN
|
| Limiting speed |
11 000 r/min
|
|
| Calculation factor | A |
0.029
|
| Calculation factor | e |
0.95
|
| Calculation factor | X |
0.6
|
| Calculation factor | Y0 |
0.58
|
| Calculation factor | Y1 |
0.66
|
| Calculation factor | Y2 |
1.07
|
MASS
| Mass bearing |
1.35 kg
|
|---|
