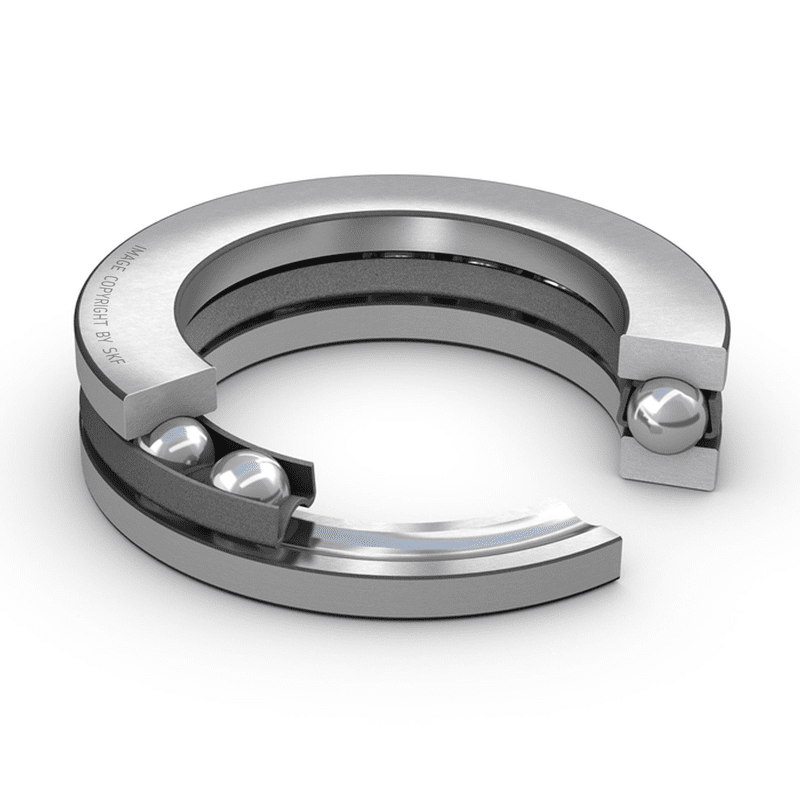

Thrust ball bearings, single direction 51103
SKU:BEA000271
Thrust ball bearings, single direction 51103
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
17 mm
|
|
|---|---|---|
| D |
30 mm
|
|
| H |
9 mm
|
|
| d1 |
≈ 30 mm
|
|
| D1 |
≈ 18 mm
|
|
| r1,2 |
min. 0.3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 25 mm
|
|
|---|---|---|
| Da |
max. 22 mm
|
|
| ra |
max. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
11.4 kN
|
|---|---|---|
| Basic static load rating | C0 |
21.2 kN
|
| Fatigue load limit | Pu |
0.78 kN
|
| Reference speed |
8 500 r/min
|
|
| Limiting speed |
12 000 r/min
|
|
| Minimum load factor | A |
0.002
|
MASS
| Mass bearing (including seat washer where applicable) |
0.025 kg
|
|---|
