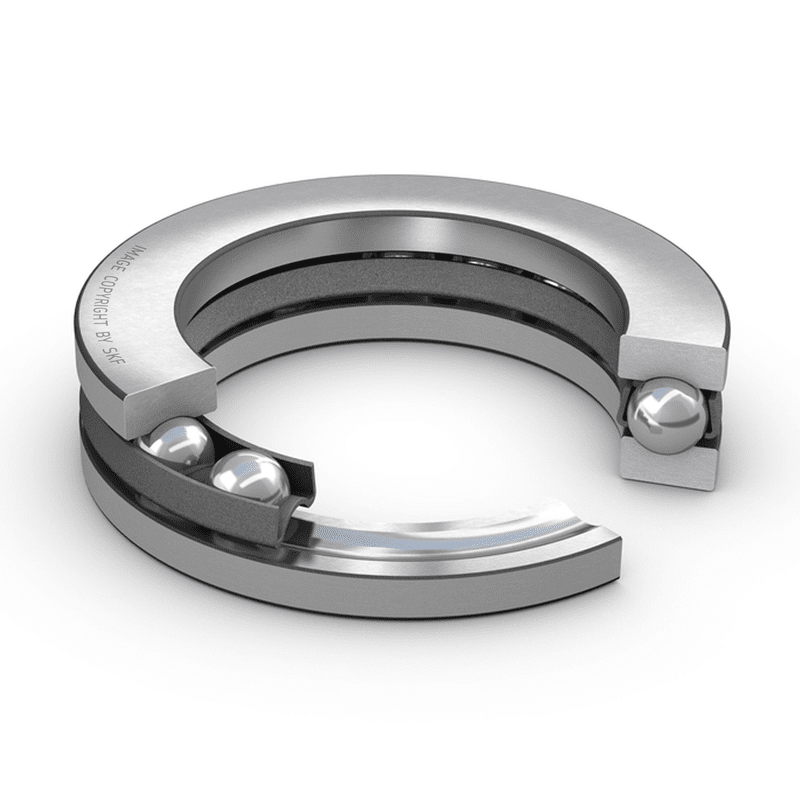

Thrust ball bearings, single direction 51107
SKU:THR000008
Thrust ball bearings, single direction 51107
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
35 mm
|
|
|---|---|---|
| D |
52 mm
|
|
| H |
12 mm
|
|
| d1 |
≈ 52 mm
|
|
| D1 |
≈ 37 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 45 mm
|
|
|---|---|---|
| Da |
max. 42 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
19.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
51 kN
|
| Fatigue load limit | Pu |
1.86 kN
|
| Reference speed |
5 600 r/min
|
|
| Limiting speed |
7 500 r/min
|
|
| Minimum load factor | A |
0.013
|
MASS
| Mass bearing (including seat washer where applicable) |
0.08 kg
|
|---|
