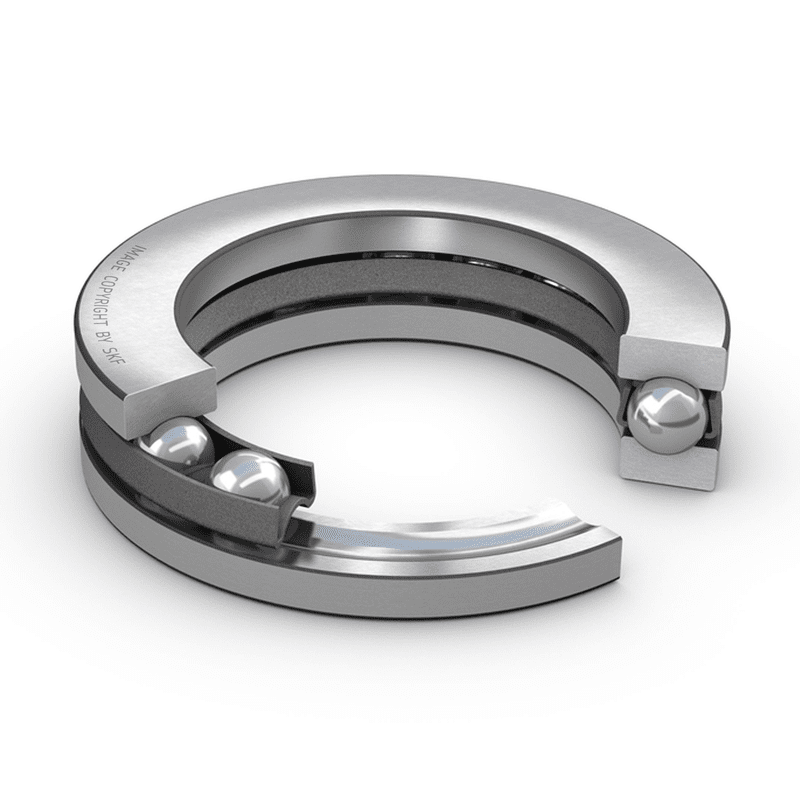

Thrust ball bearings, single direction 51108
SKU:BEA001465
Thrust ball bearings, single direction 51108
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
40 mm
|
|
|---|---|---|
| D |
60 mm
|
|
| H |
13 mm
|
|
| d1 |
≈ 60 mm
|
|
| D1 |
≈ 42 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 52 mm
|
|
|---|---|---|
| Da |
max. 48 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
25.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
63 kN
|
| Fatigue load limit | Pu |
2.32 kN
|
| Reference speed |
5 000 r/min
|
|
| Limiting speed |
7 000 r/min
|
|
| Minimum load factor | A |
0.02
|
MASS
| Mass bearing (including seat washer where applicable) |
0.12 kg
|
|---|
