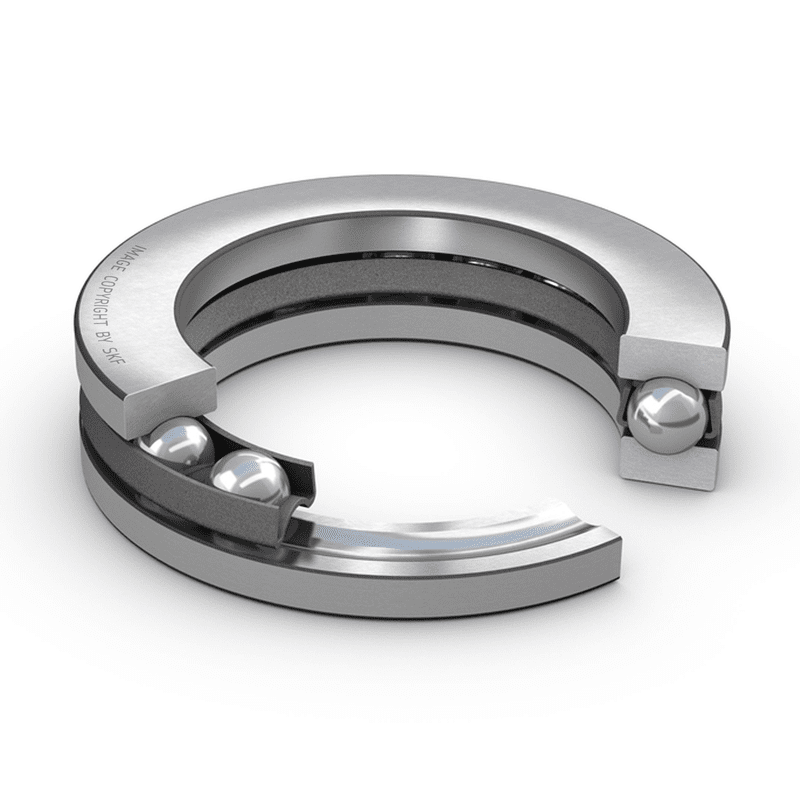

Thrust ball bearings, single direction 51110
SKU:BEA001120
Thrust ball bearings, single direction 51110
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
50 mm
|
|
|---|---|---|
| D |
70 mm
|
|
| H |
14 mm
|
|
| d1 |
≈ 70 mm
|
|
| D1 |
≈ 52 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 62 mm
|
|
|---|---|---|
| Da |
max. 58 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
27 kN
|
|---|---|---|
| Basic static load rating | C0 |
75 kN
|
| Fatigue load limit | Pu |
2.8 kN
|
| Reference speed |
4 300 r/min
|
|
| Limiting speed |
6 300 r/min
|
|
| Minimum load factor | A |
0.029
|
MASS
| Mass bearing (including seat washer where applicable) |
0.16 kg
|
|---|
