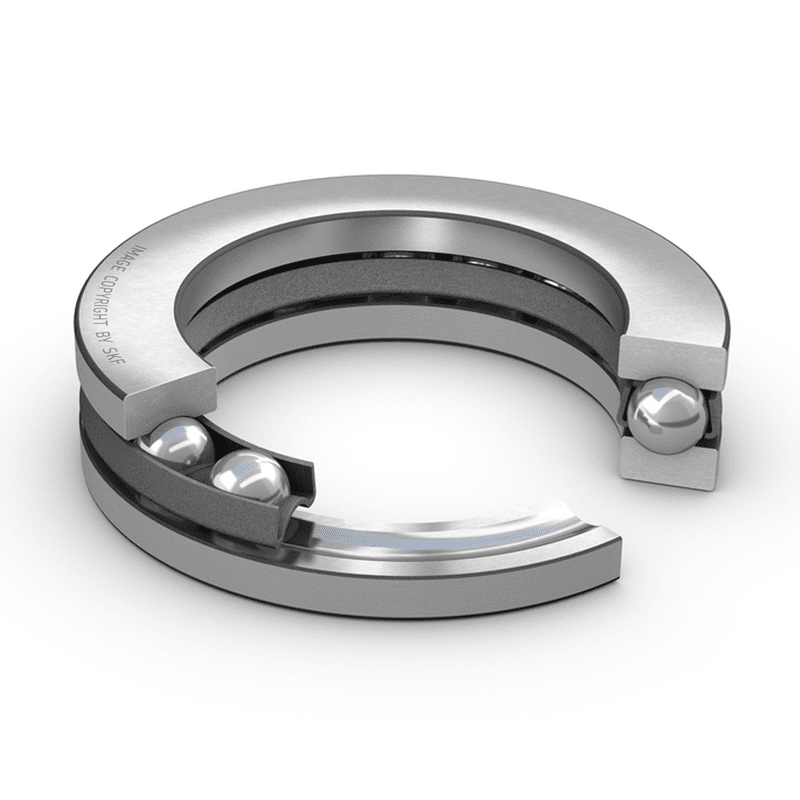

Thrust ball bearings, single direction 51111
SKU:BEA000071
Thrust ball bearings, single direction 51111
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
55 mm
|
|
|---|---|---|
| D |
78 mm
|
|
| H |
16 mm
|
|
| d1 |
≈ 78 mm
|
|
| D1 |
≈ 57 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 69 mm
|
|
|---|---|---|
| Da |
max. 64 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
30.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
81.5 kN
|
| Fatigue load limit | Pu |
3 kN
|
| Reference speed |
3 800 r/min
|
|
| Limiting speed |
5 300 r/min
|
|
| Minimum load factor | A |
0.039
|
MASS
| Mass bearing (including seat washer where applicable) |
0.23 kg
|
|---|
