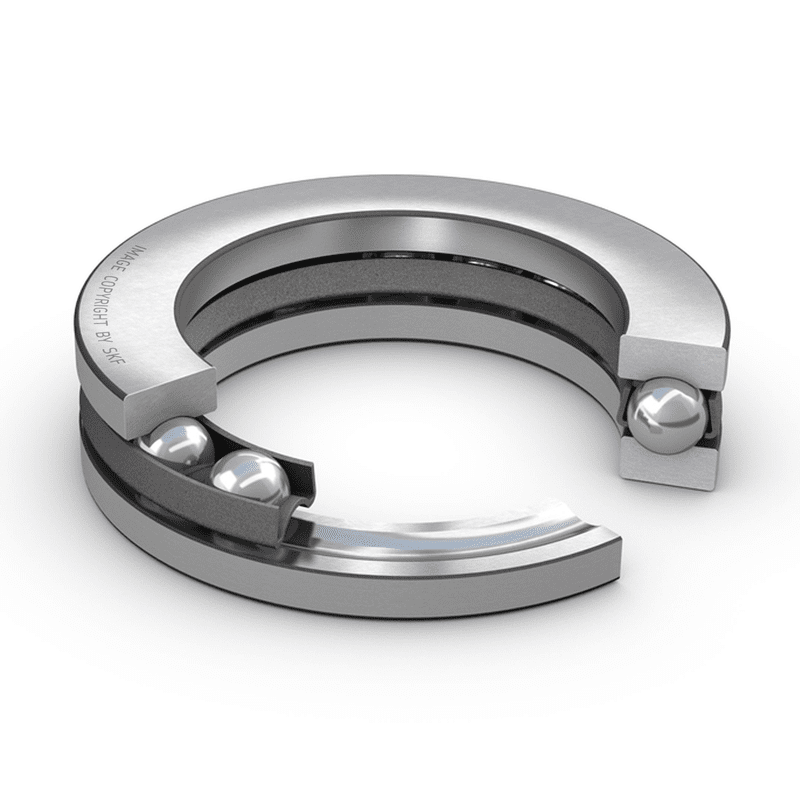

Thrust ball bearings, single direction 51116
SKU:THR000020
Thrust ball bearings, single direction 51116
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
80 mm
|
|
|---|---|---|
| D |
105 mm
|
|
| H |
19 mm
|
|
| d1 |
≈ 105 mm
|
|
| D1 |
≈ 82 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 95 mm
|
|
|---|---|---|
| Da |
max. 90 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
44.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
140 kN
|
| Fatigue load limit | Pu |
5.1 kN
|
| Reference speed |
3 000 r/min
|
|
| Limiting speed |
4 300 r/min
|
|
| Minimum load factor | A |
0.12
|
MASS
| Mass bearing (including seat washer where applicable) |
0.42 kg
|
|---|
