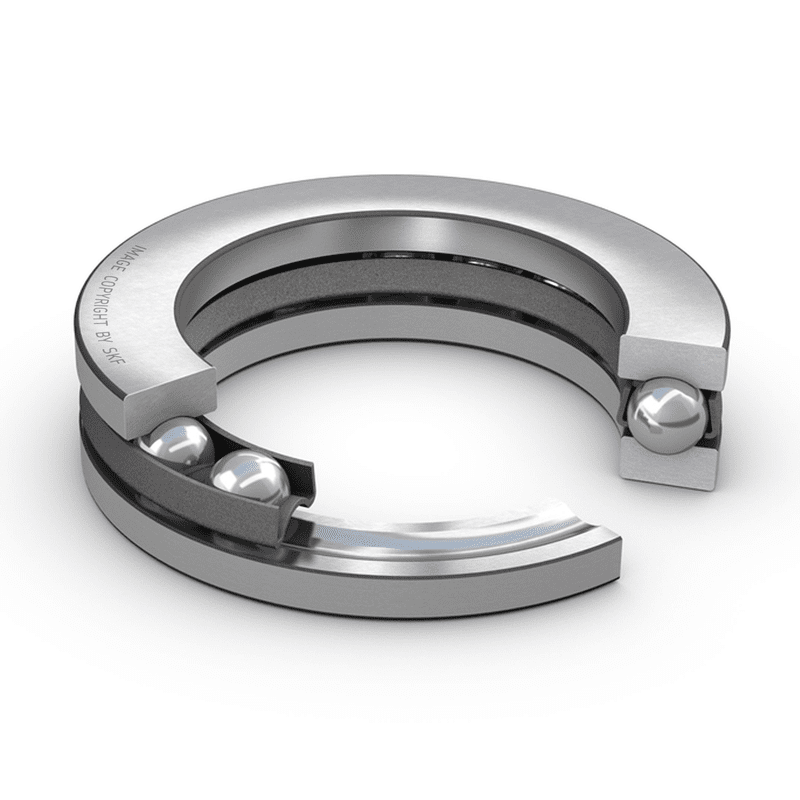

Thrust ball bearings, single direction 51120
SKU:THR000003
Thrust ball bearings, single direction 51120
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
100 mm
|
|
|---|---|---|
| D |
135 mm
|
|
| H |
25 mm
|
|
| d1 |
≈ 135 mm
|
|
| D1 |
≈ 102 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 121 mm
|
|
|---|---|---|
| Da |
max. 114 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
80.6 kN
|
|---|---|---|
| Basic static load rating | C0 |
265 kN
|
| Fatigue load limit | Pu |
9.15 kN
|
| Reference speed |
2 400 r/min
|
|
| Limiting speed |
3 200 r/min
|
|
| Minimum load factor | A |
0.44
|
MASS
| Mass bearing (including seat washer where applicable) |
0.97 kg
|
|---|
