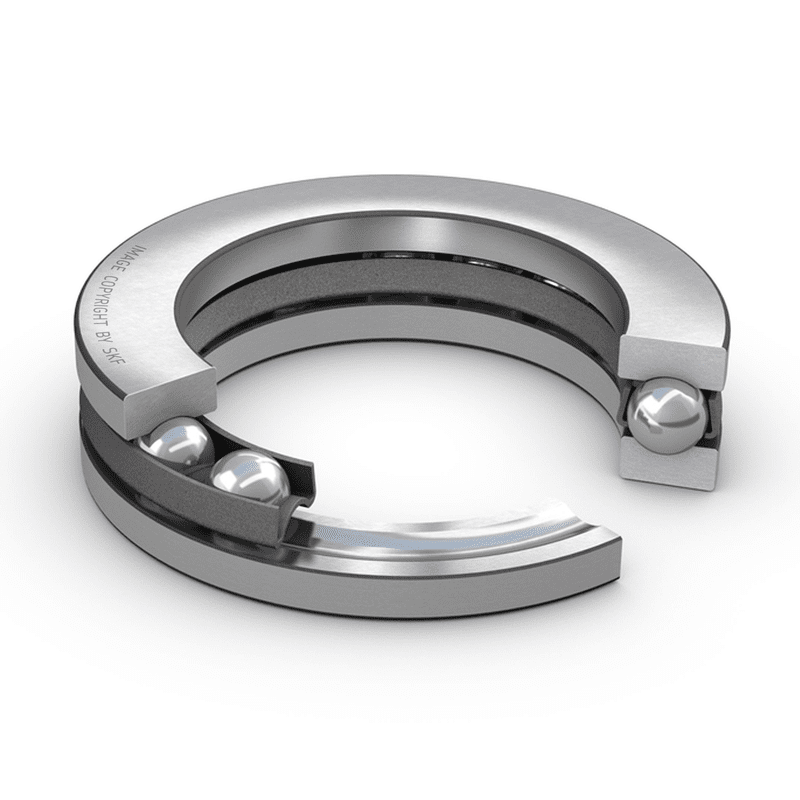

Thrust ball bearings, single direction 51204
SKU:TBB000004
Thrust ball bearings, single direction 51204
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
20 mm
|
|
|---|---|---|
| D |
40 mm
|
|
| H |
14 mm
|
|
| d1 |
≈ 40 mm
|
|
| D1 |
≈ 22 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 32 mm
|
|
|---|---|---|
| Da |
max. 28 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
21.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
37.5 kN
|
| Fatigue load limit | Pu |
1.4 kN
|
| Reference speed |
6 000 r/min
|
|
| Limiting speed |
8 000 r/min
|
|
| Minimum load factor | A |
0.009
|
MASS
| Mass bearing (including seat washer where applicable) |
0.083 kg
|
|---|
