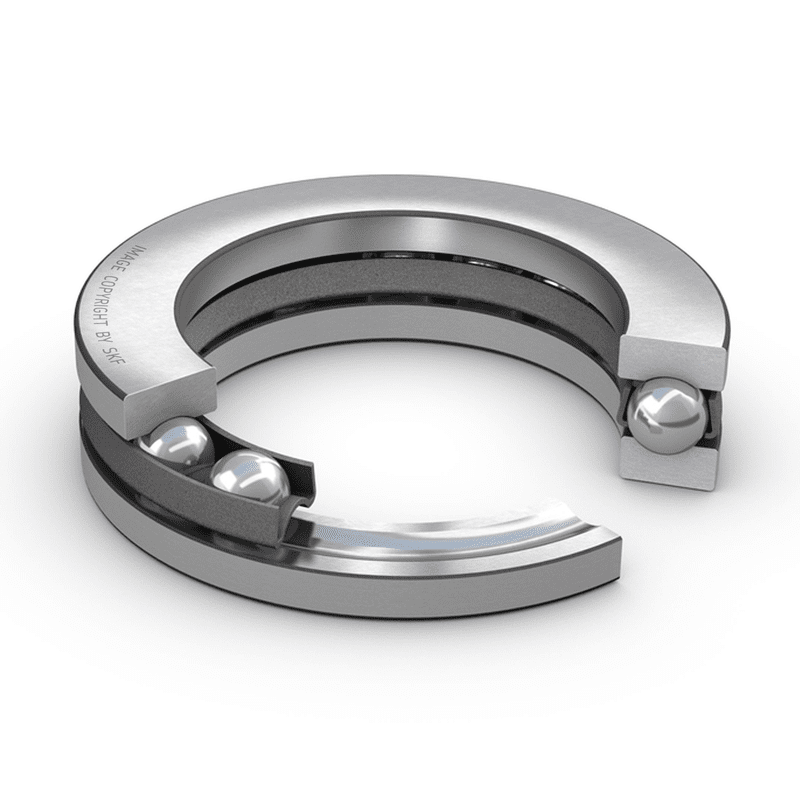

Thrust ball bearings, single direction 51205
SKU:TBB000006
Thrust ball bearings, single direction 51205
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
25 mm
|
|
|---|---|---|
| D |
47 mm
|
|
| H |
15 mm
|
|
| d1 |
≈ 47 mm
|
|
| D1 |
≈ 27 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 38 mm
|
|
|---|---|---|
| Da |
max. 34 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
26.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
50 kN
|
| Fatigue load limit | Pu |
1.86 kN
|
| Reference speed |
5 300 r/min
|
|
| Limiting speed |
7 500 r/min
|
|
| Minimum load factor | A |
0.015
|
MASS
| Mass bearing (including seat washer where applicable) |
0.11 kg
|
|---|
