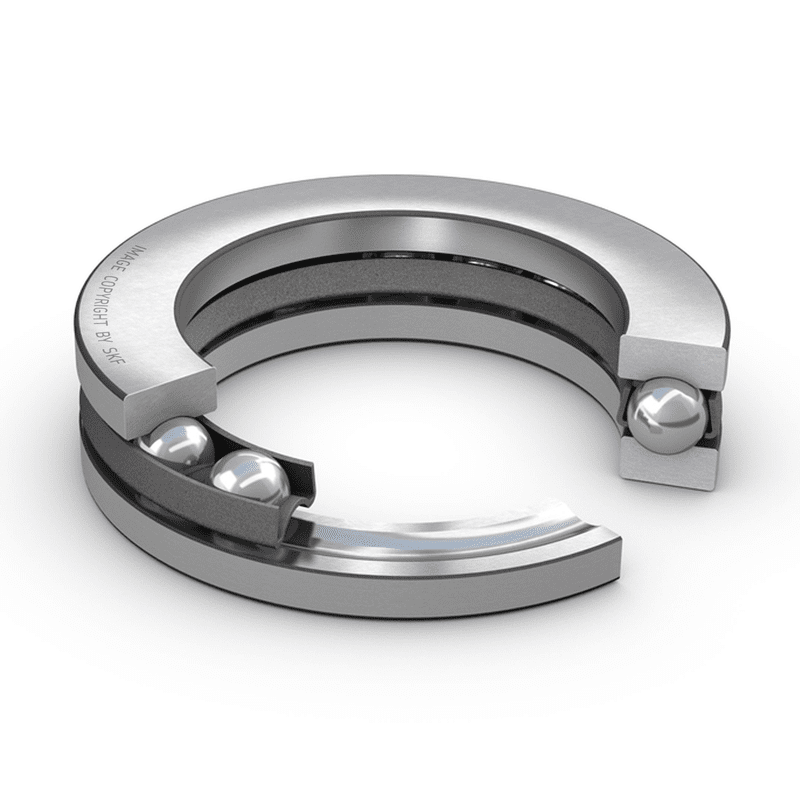

Thrust ball bearings, single direction 51207
SKU:THR000012
Thrust ball bearings, single direction 51207
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
35 mm
|
|
|---|---|---|
| D |
62 mm
|
|
| H |
18 mm
|
|
| d1 |
≈ 62 mm
|
|
| D1 |
≈ 37 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 51 mm
|
|
|---|---|---|
| Da |
max. 46 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
35.1 kN
|
|---|---|---|
| Basic static load rating | C0 |
73.5 kN
|
| Fatigue load limit | Pu |
2.7 kN
|
| Reference speed |
4 000 r/min
|
|
| Limiting speed |
5 600 r/min
|
|
| Minimum load factor | A |
0.028
|
MASS
| Mass bearing (including seat washer where applicable) |
0.22 kg
|
|---|
