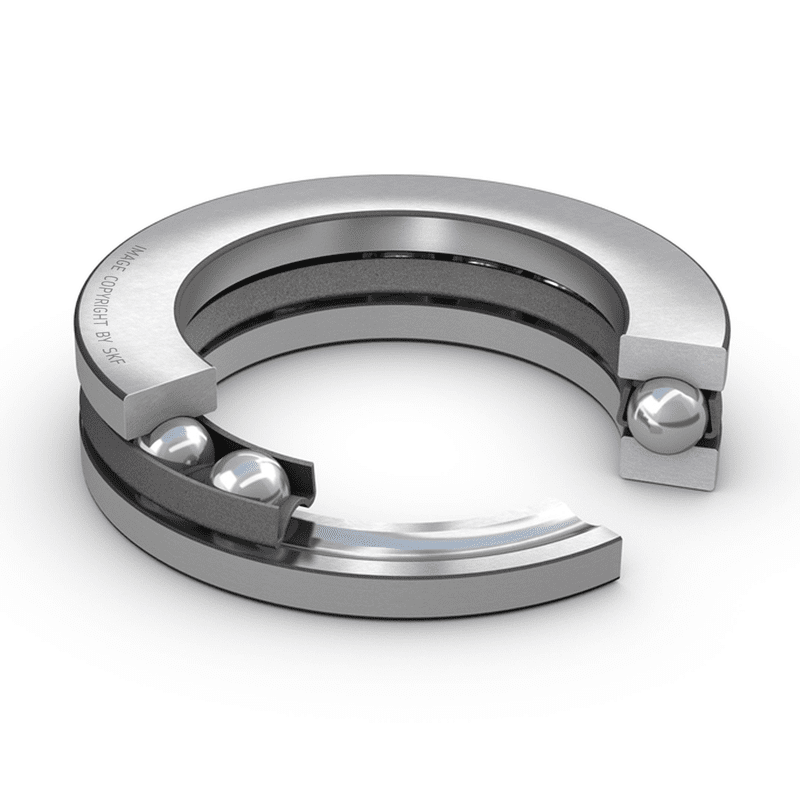

Thrust ball bearings, single direction 51208
SKU:THR000014
Thrust ball bearings, single direction 51208
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
40 mm
|
|
|---|---|---|
| D |
68 mm
|
|
| H |
19 mm
|
|
| d1 |
≈ 68 mm
|
|
| D1 |
≈ 42 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 57 mm
|
|
|---|---|---|
| Da |
max. 51 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
44.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
96.5 kN
|
| Fatigue load limit | Pu |
3.6 kN
|
| Reference speed |
3 800 r/min
|
|
| Limiting speed |
5 300 r/min
|
|
| Minimum load factor | A |
0.058
|
MASS
| Mass bearing (including seat washer where applicable) |
0.28 kg
|
|---|
