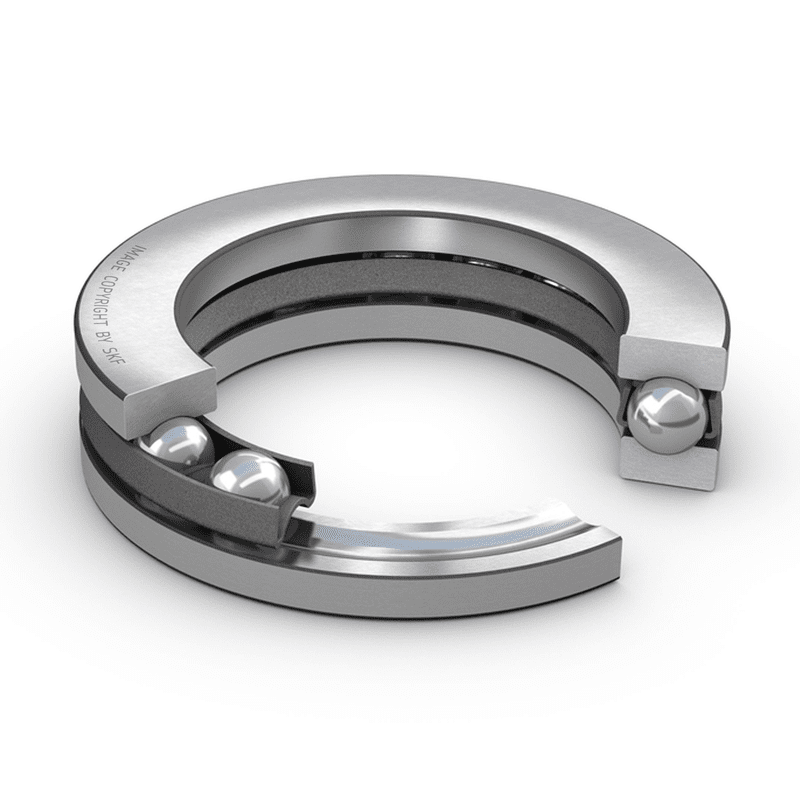

Thrust ball bearings, single direction 51220
SKU:BEA000921
Thrust ball bearings, single direction 51220
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
100 mm
|
|
|---|---|---|
| D |
150 mm
|
|
| H |
38 mm
|
|
| d1 |
≈ 150 mm
|
|
| D1 |
≈ 103 mm
|
|
| r1,2 |
min. 1.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 130 mm
|
|
|---|---|---|
| Da |
max. 120 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
119 kN
|
|---|---|---|
| Basic static load rating | C0 |
325 kN
|
| Fatigue load limit | Pu |
10.8 kN
|
| Reference speed |
1 800 r/min
|
|
| Limiting speed |
2 400 r/min
|
|
| Minimum load factor | A |
0.62
|
MASS
| Mass bearing (including seat washer where applicable) |
2.2 kg
|
|---|
