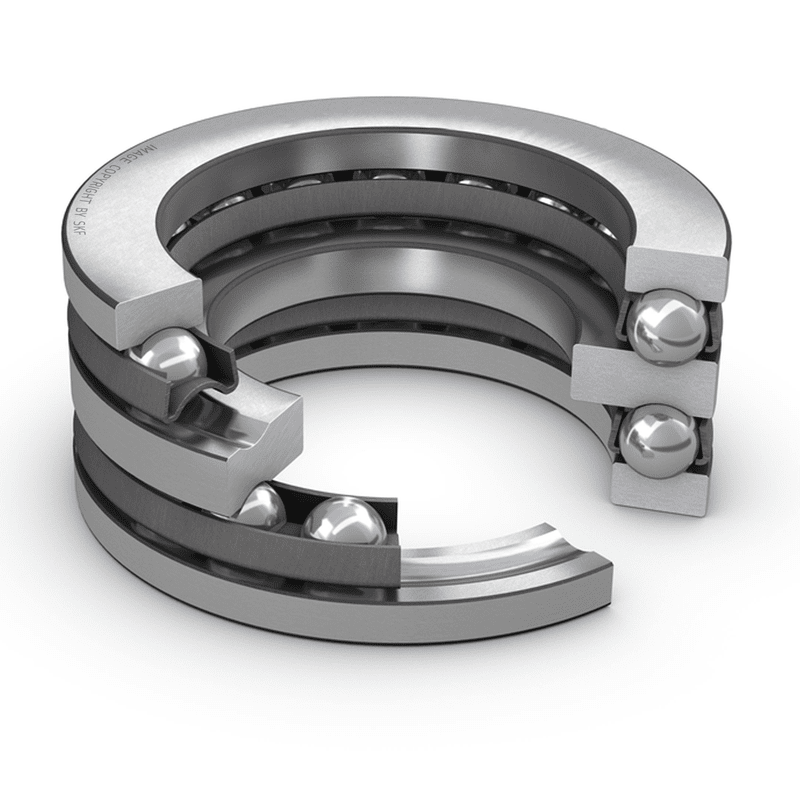

Thrust ball bearings, double direction 52314
SKU:BEA001511
Thrust ball bearings, double direction 52314
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
55 mm
|
|
|---|---|---|
| D |
125 mm
|
|
| H |
72 mm
|
|
| D1 |
≈ 72 mm
|
|
| B |
16 mm
|
|
| r1,2 |
min. 1.1 mm
|
|
| r3,4 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
70 mm
|
|
|---|---|---|
| Da |
max. 92 mm
|
|
| ra |
max. 1 mm
|
|
| rb |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
135 kN
|
|---|---|---|
| Basic static load rating | C0 |
320 kN
|
| Fatigue load limit | Pu |
11.8 kN
|
| Reference speed |
1 400 r/min
|
|
| Limiting speed |
2 000 r/min
|
|
| Minimum load factor | A |
0.53
|
MASS
| Mass bearing (including seat washer where applicable) |
3.65 kg
|
|---|
