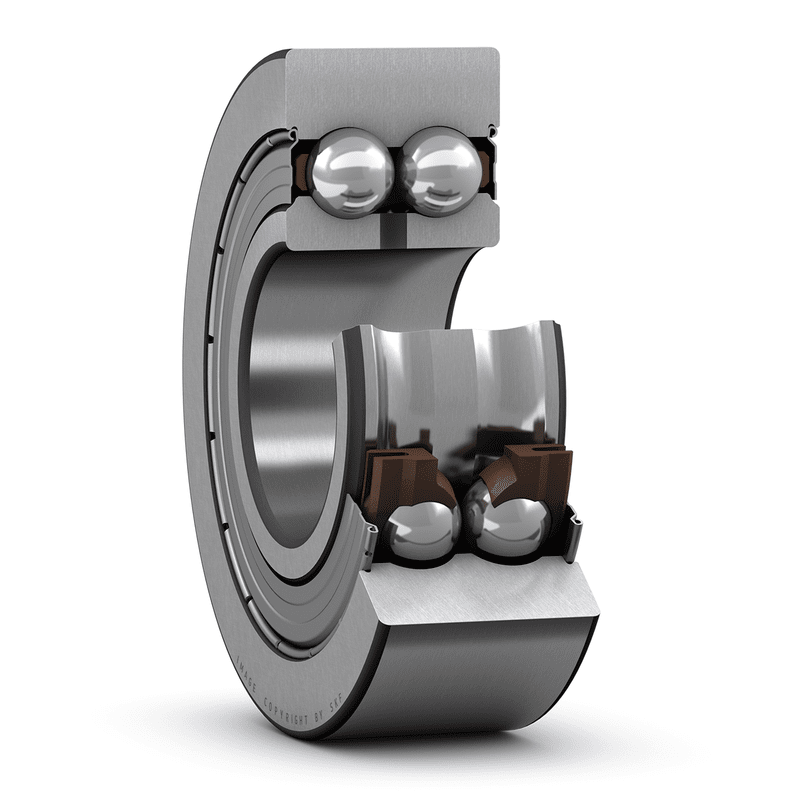

Description
Technical specification
DIMENSIONS
| D |
80 mm
|
|
|---|---|---|
| d |
35 mm
|
|
| B |
27 mm
|
|
| d1 |
≈ 45.4 mm
|
|
| D1 |
≈ 63.9 mm
|
|
| R |
400 mm
|
|
| r1,2 |
min. 1.1 mm
|
|
| a |
42 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
31.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
20.4 kN
|
| Fatigue load limit | Pu |
0.865 kN
|
| Maximum dynamic radial load | Fr |
max. 15.6 kN
|
| Maximum static radial load | F0r |
max. 22.4 kN
|
| Limiting speed |
4 300 r/min
|
MASS
| Mass cam roller |
0.65 kg
|
|---|
