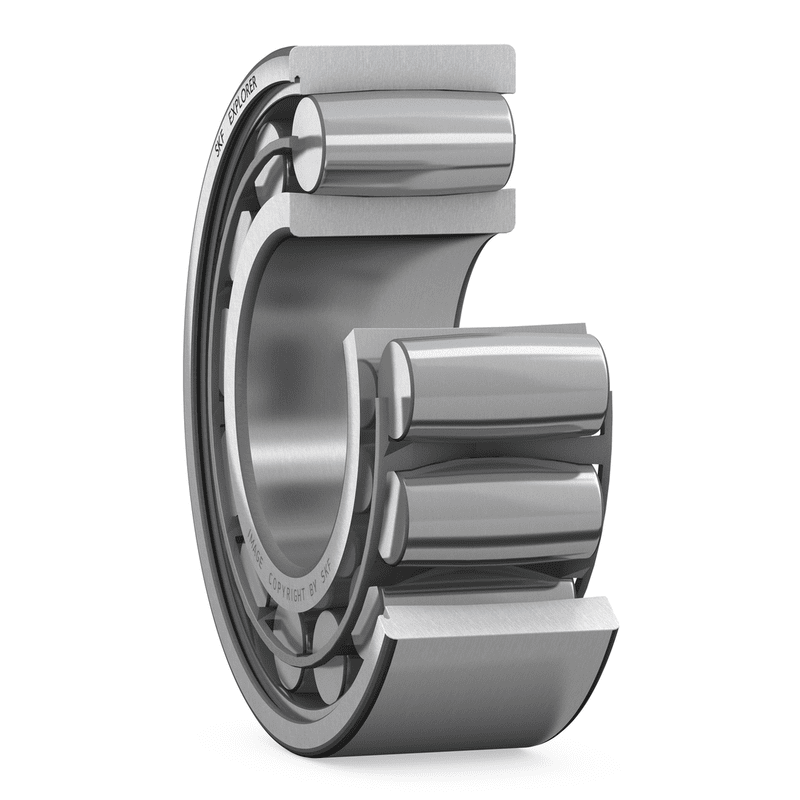

CARB toroidal roller bearings C2220KC3
SKU:CAR000005
CARB toroidal roller bearings C2220KC3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
100 mm
|
|
|---|---|---|
| D |
180 mm
|
|
| B |
46 mm
|
|
| d2 |
≈ 118 mm
|
|
| D1 |
≈ 157 mm
|
|
| s1 |
max. 10.1 mm
|
|
| r1,2 |
min. 2.1 mm
|
|
|
Tapered bore, taper 1:12
|
ABUTMENT DIMENSIONS
| Da |
min. 146 mm
|
|
|---|---|---|
| Da |
max. 168 mm
|
|
| Ca |
min. 0.9 mm
|
|
| ra |
max. 2 mm
|
|
|
CALCULATION DATA
| Basic dynamic load rating | C |
415 kN
|
|---|---|---|
| Basic static load rating | C0 |
465 kN
|
| Fatigue load limit | Pu |
49 kN
|
| Reference speed |
3 600 r/min
|
|
| Limiting speed |
4 800 r/min
|
|
| Misalignment factor | k1 |
0.108
|
| Operating clearance factor | k2 |
0.11
|
MASS
| Mass bearing |
4.8 kg
|
|---|
