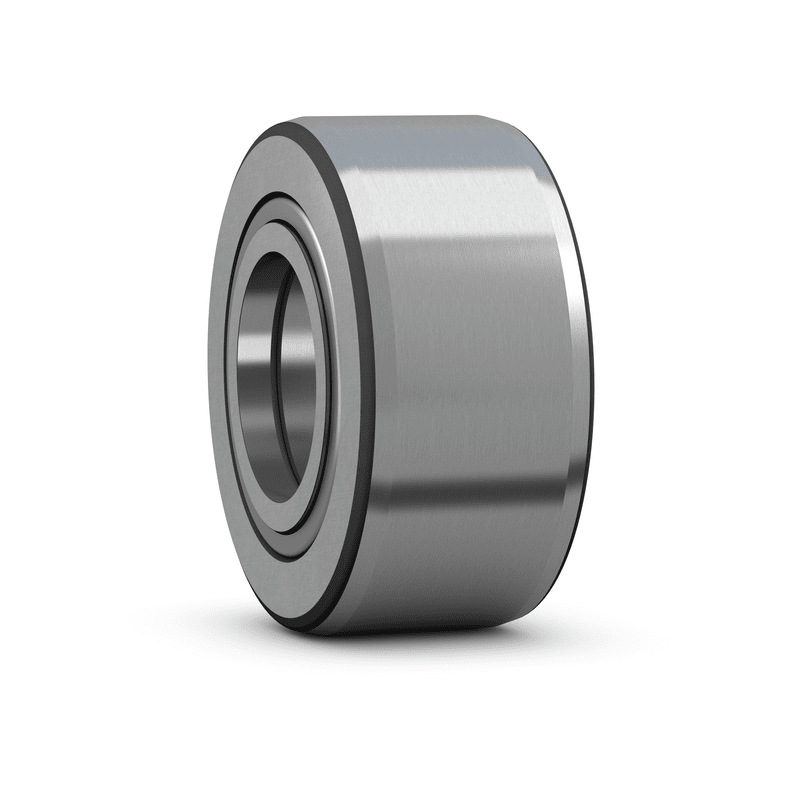

Support rollers, with flange rings, with an inner ring NUTR2052 A
SKU:SUP000010
Support rollers, with flange rings, with an inner ring NUTR2052 A
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| D |
52 mm
|
|
|---|---|---|
| d |
20 mm
|
|
| C |
24 mm
|
|
| B |
25 mm
|
|
| d1 |
27 mm
|
|
| r1,2 |
min. 1 mm
|
|
| r3,4 |
min. 0.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
31.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
39 kN
|
| Fatigue load limit | Pu |
4.55 kN
|
| Maximum dynamic radial loads | Fr |
max. 30 kN
|
| Maximum static radial loads | F0r |
max. 42.5 kN
|
| Limiting speed |
3 800 r/min
|
MASS
| Mass support roller |
0.32 kg
|
|---|
