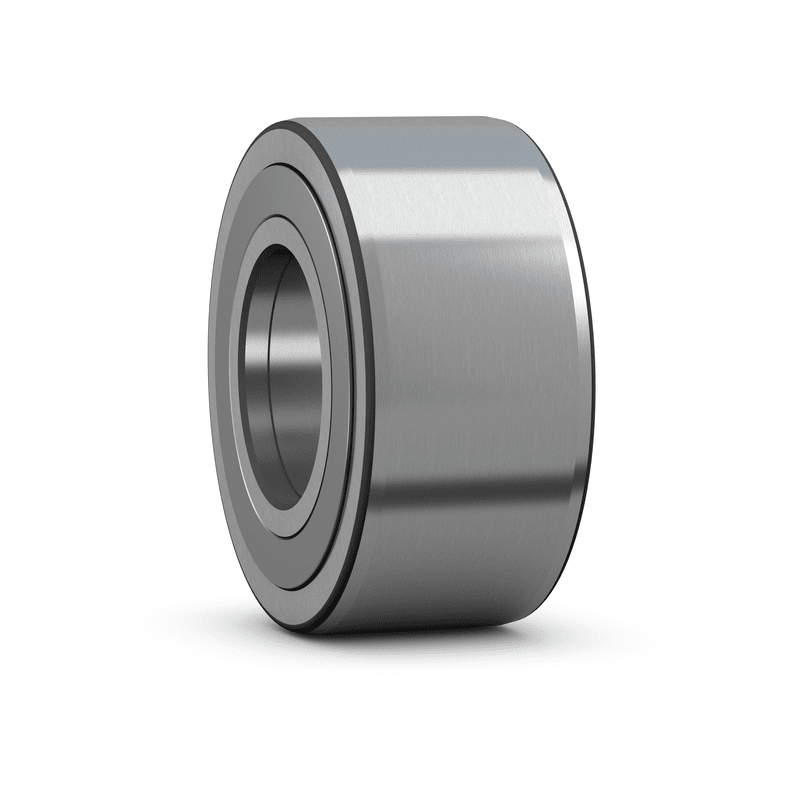

Support rollers, with flange rings, with an inner ring NATR6
SKU:TRA000006
Support rollers, with flange rings, with an inner ring NATR6
Manufacturer : NSK
Description
Technical specification
DIMENSIONS
| D |
19 mm
|
|
|---|---|---|
| d |
6 mm
|
|
| C |
11 mm
|
|
| B |
12 mm
|
|
| d1 |
15 mm
|
|
| r1,2 |
min. 0.15 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
3.47 kN
|
|---|---|---|
| Basic static load rating | C0 |
3.8 kN
|
| Fatigue load limit | Pu |
0.415 kN
|
| Maximum dynamic radial loads | Fr |
max. 3.8 kN
|
| Maximum static radial loads | F0r |
max. 5.5 kN
|
| Limiting speed |
5 600 r/min
|
MASS
| Mass support roller |
0.02 kg
|
|---|
