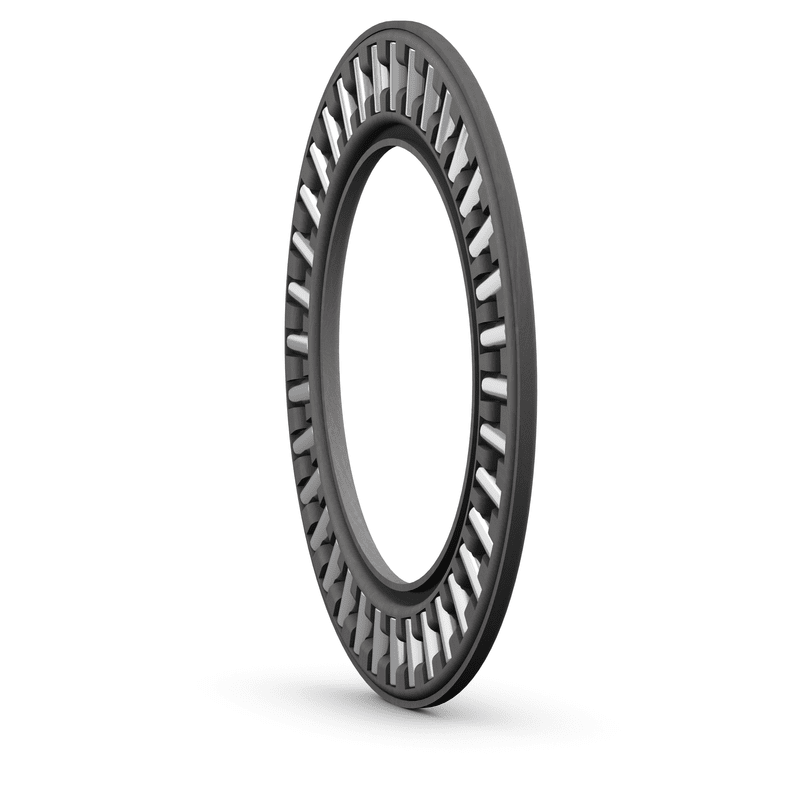

Needle roller thrust bearings AXK 2035
SKU:NEE000026
Needle roller thrust bearings AXK 2035
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
20 mm
|
|
|---|---|---|
| D |
35 mm
|
|
| Dw |
2 mm
|
|
| Ea |
min. 22 mm
|
|
| Eb |
max. 34 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
12 kN
|
|---|---|---|
| Basic static load rating | C0 |
47.5 kN
|
| Fatigue load limit | Pu |
5.6 kN
|
| Reference speed |
4 300 r/min
|
|
| Limiting speed |
8 500 r/min
|
MASS
| Mass roller and cage thrust assembly |
0.005 kg
|
|---|
