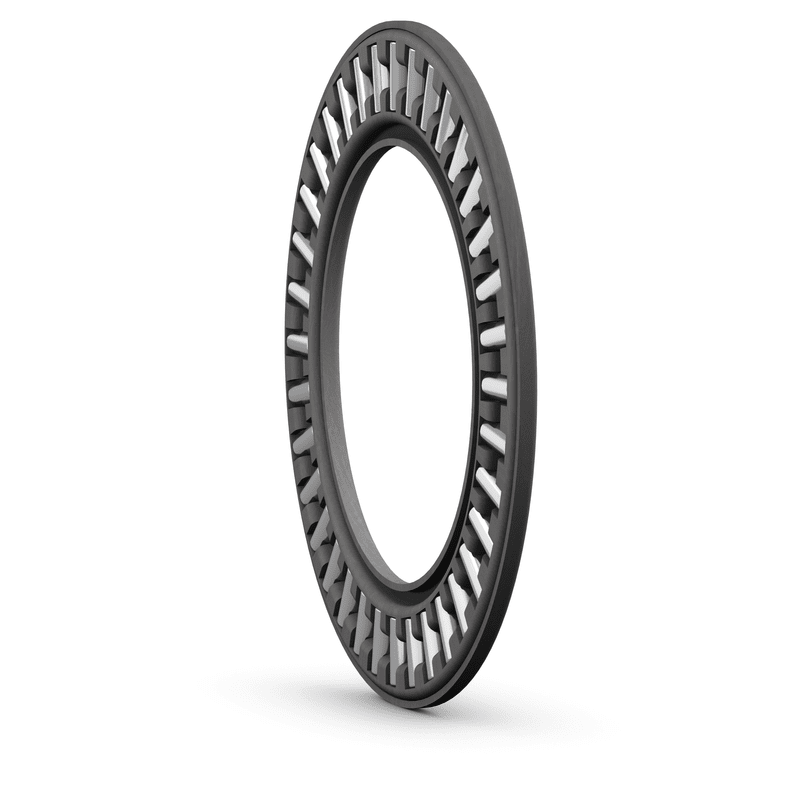

Needle roller thrust bearings AXK 3552
SKU:NEE000025
Needle roller thrust bearings AXK 3552
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
35 mm
|
|
|---|---|---|
| D |
52 mm
|
|
| Dw |
2 mm
|
|
| Ea |
min. 39 mm
|
|
| Eb |
max. 51 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
16.6 kN
|
|---|---|---|
| Basic static load rating | C0 |
83 kN
|
| Fatigue load limit | Pu |
9.8 kN
|
| Reference speed |
3 200 r/min
|
|
| Limiting speed |
6 300 r/min
|
MASS
| Mass roller and cage thrust assembly |
0.01 kg
|
|---|
