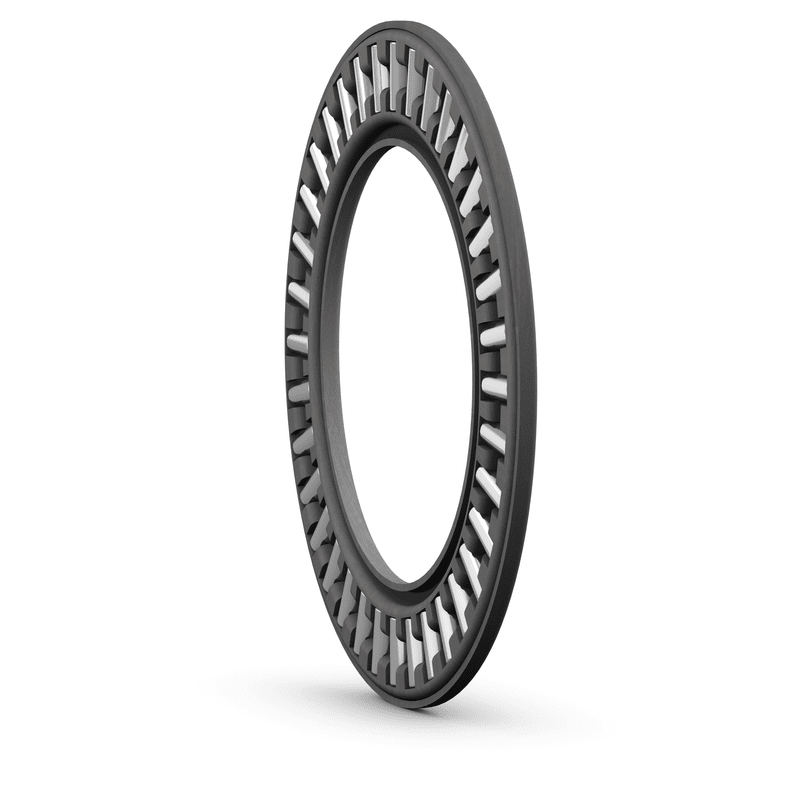

Needle roller thrust bearings AXK 5070
SKU:NEE000045
Needle roller thrust bearings AXK 5070
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
50 mm
|
|
|---|---|---|
| D |
70 mm
|
|
| Dw |
3 mm
|
|
| Ea |
min. 55 mm
|
|
| Eb |
max. 68 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
28.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
143 kN
|
| Fatigue load limit | Pu |
17 kN
|
| Reference speed |
2 400 r/min
|
|
| Limiting speed |
5 000 r/min
|
MASS
| Mass roller and cage thrust assembly |
0.02 kg
|
|---|
