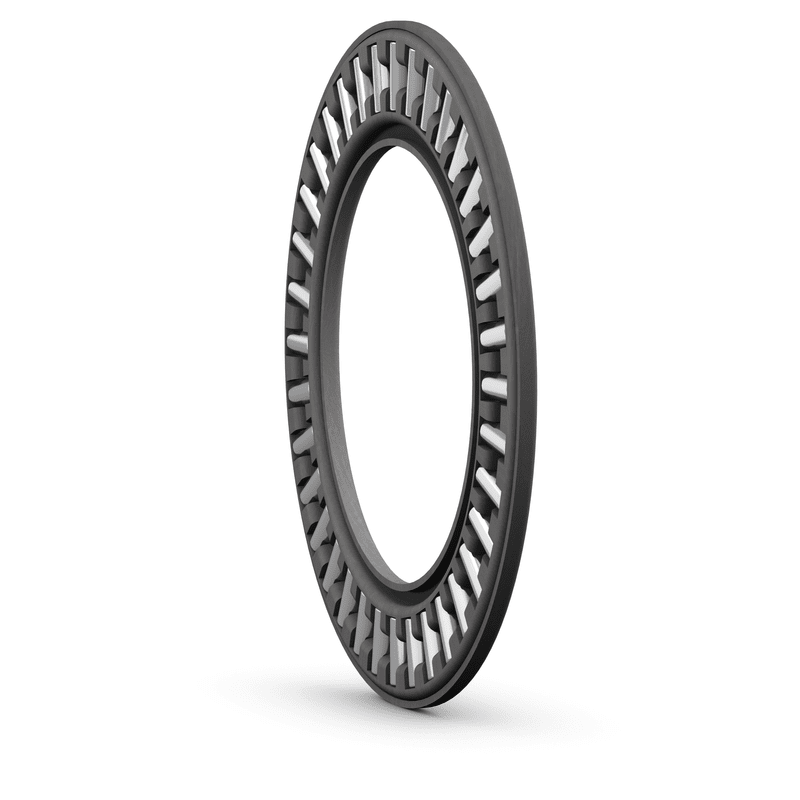

Needle roller thrust bearings AXK 6085
SKU:NEE000022
Needle roller thrust bearings AXK 6085
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
60 mm
|
|
|---|---|---|
| D |
85 mm
|
|
| Dw |
3 mm
|
|
| Ea |
min. 65 mm
|
|
| Eb |
max. 83 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
37.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
232 kN
|
| Fatigue load limit | Pu |
28.5 kN
|
| Reference speed |
2 200 r/min
|
|
| Limiting speed |
4 300 r/min
|
MASS
| Mass roller and cage thrust assembly |
0.033 kg
|
|---|
