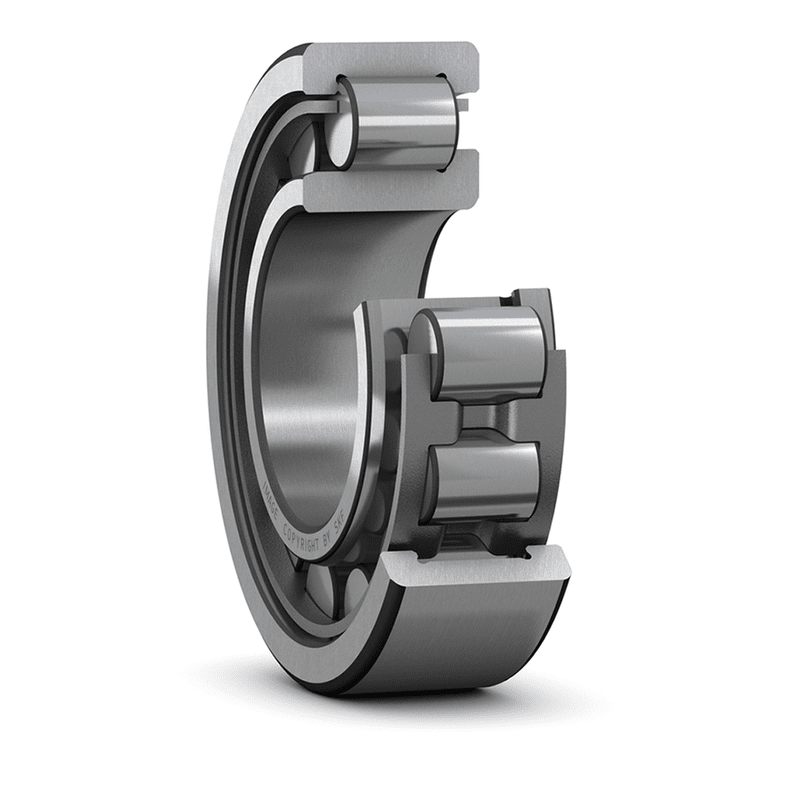

Cylindrical roller bearings, single row NJ2320ECJ/C3
SKU:BEA001582
Cylindrical roller bearings, single row NJ2320ECJ/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
100 mm
|
|
|---|---|---|
| D |
215 mm
|
|
| B |
73 mm
|
|
| d1 |
≈ 139 mm
|
|
| D1 |
≈ 181.1 mm
|
|
| F |
127.5 mm
|
|
| r1,2 |
min. 3 mm
|
|
| r3,4 |
min. 3 mm
|
|
| s |
max. 5.9 mm
|
ABUTMENT DIMENSIONS
| da |
min. 114 mm
|
|
|---|---|---|
| da |
max. 124 mm
|
|
| db |
min. 142 mm
|
|
| Da |
max. 199.6 mm
|
|
| ra |
max. 2.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
670 kN
|
|---|---|---|
| Basic static load rating | C0 |
735 kN
|
| Fatigue load limit | Pu |
85 kN
|
| Reference speed |
3 200 r/min
|
|
| Limiting speed |
3 800 r/min
|
|
| Calculation factor | kr |
0.25
|
| Limiting value | e |
0.3
|
| Axial load factor | Y |
0.4
|
MASS
| Mass bearing |
12.1 kg
|
|---|
