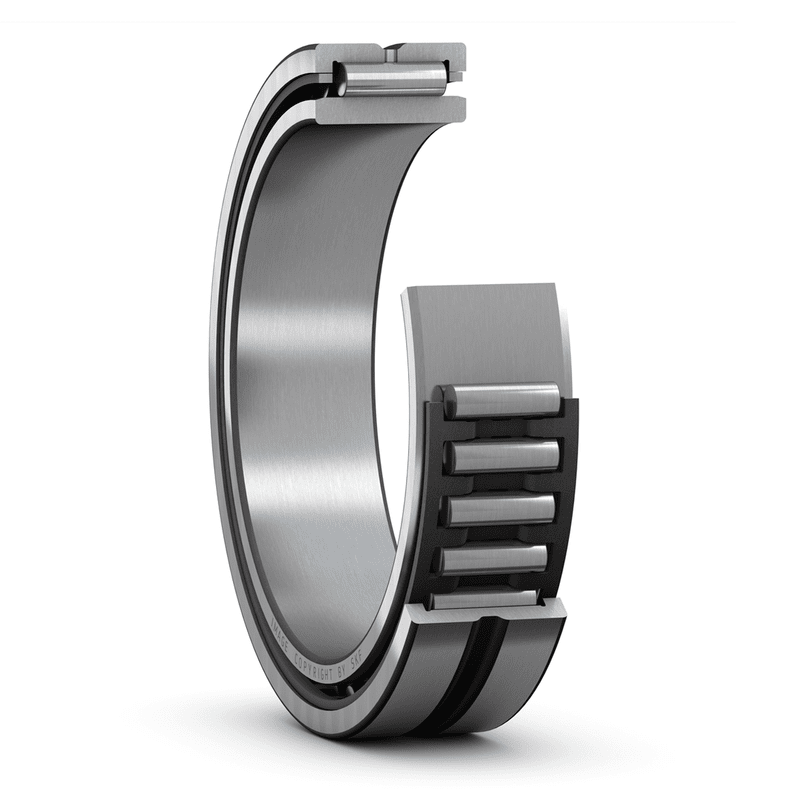

Needle roller bearings with machined rings, with an inner ring NKI 35/30
SKU:NKI000001
Needle roller bearings with machined rings, with an inner ring NKI 35/30
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
35 mm
|
|
|---|---|---|
| D |
50 mm
|
|
| B |
30 mm
|
|
| F |
40 mm
|
|
| r1,2 |
min. 0.3 mm
|
|
| s |
max. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 37 mm
|
|
|---|---|---|
| Da |
max. 48 mm
|
|
| ra |
max. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
38 kN
|
|---|---|---|
| Basic static load rating | C0 |
83 kN
|
| Fatigue load limit | Pu |
10.4 kN
|
| Reference speed |
10 000 r/min
|
|
| Limiting speed |
11 000 r/min
|
MASS
| Mass bearing |
0.19 kg
|
|---|
