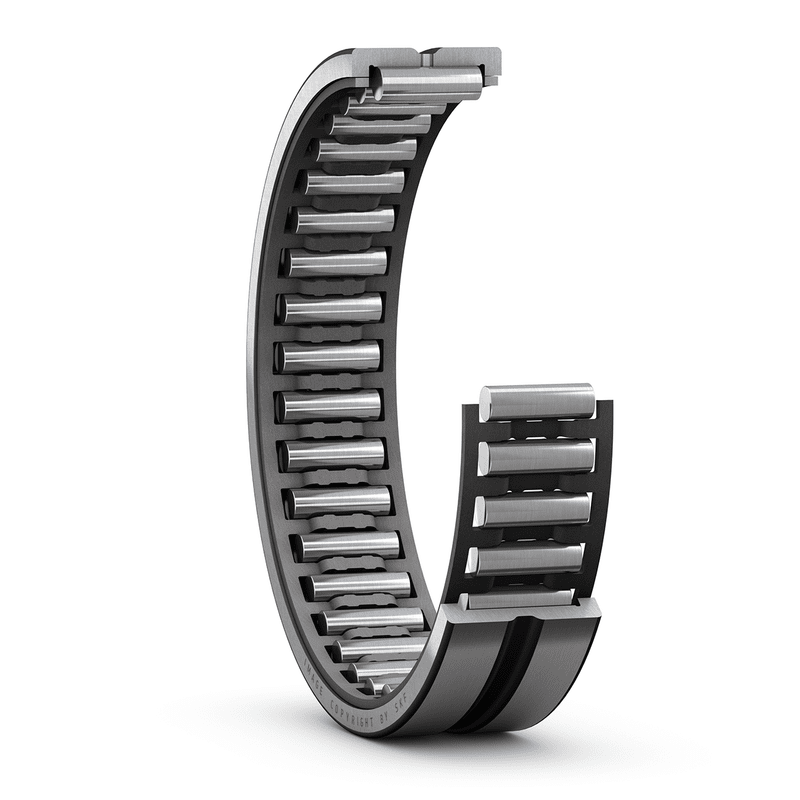

Needle roller bearings with machined rings, without an inner ring NKS 70
SKU:NEE000004
Needle roller bearings with machined rings, without an inner ring NKS 70
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| Fw |
70 mm
|
|
|---|---|---|
| D |
90 mm
|
|
| C |
28 mm
|
|
| r1,2 |
min. 1.1 mm
|
ABUTMENT DIMENSIONS
| Da |
max. 83.5 mm
|
|
|---|---|---|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
68.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
120 kN
|
| Fatigue load limit | Pu |
15.3 kN
|
| Reference speed |
5 600 r/min
|
|
| Limiting speed |
6 300 r/min
|
MASS
| Mass bearing |
0.38 kg
|
|---|
