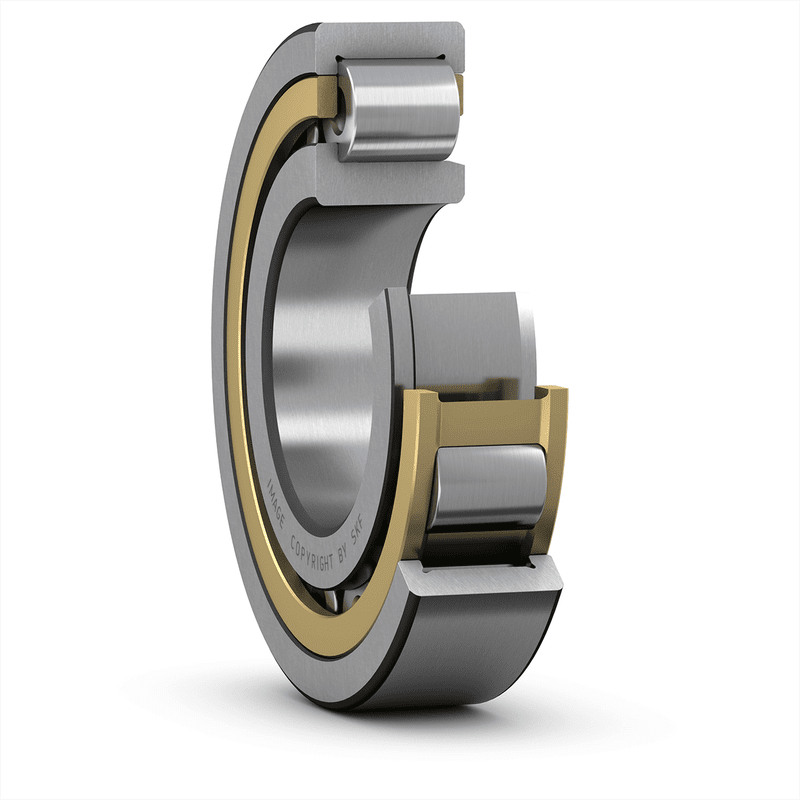

Cylindrical roller bearings, single row NU1024ML/C3
SKU:BEA001443
Cylindrical roller bearings, single row NU1024ML/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
120 mm
|
|
|---|---|---|
| D |
180 mm
|
|
| B |
28 mm
|
|
| D1 |
≈ 159.7 mm
|
|
| F |
135 mm
|
|
| r1,2 |
min. 2 mm
|
|
| r3,4 |
min. 1.1 mm
|
|
| s |
max. 3.8 mm
|
ABUTMENT DIMENSIONS
| da |
min. 126 mm
|
|
|---|---|---|
| da |
max. 133 mm
|
|
| db |
min. 138 mm
|
|
| Da |
max. 171 mm
|
|
| ra |
max. 2 mm
|
|
| rb |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
153 kN
|
|---|---|---|
| Basic static load rating | C0 |
183 kN
|
| Fatigue load limit | Pu |
20.8 kN
|
| Reference speed |
4 000 r/min
|
|
| Limiting speed |
6 300 r/min
|
|
| Calculation factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Axial load factor | Y |
0.6
|
MASS
| Mass bearing |
2.53 kg
|
|---|
