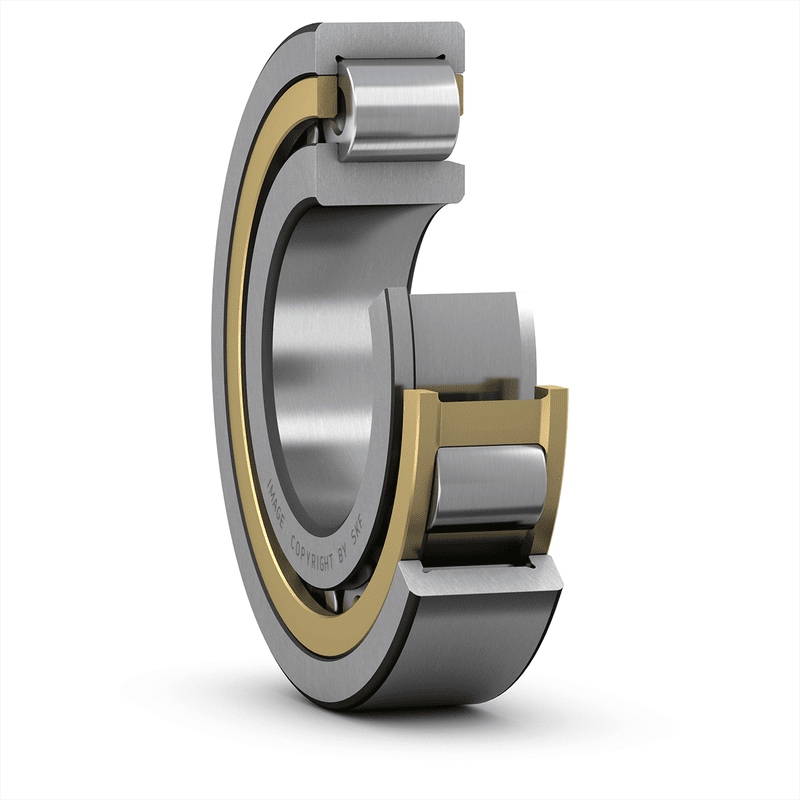

Cylindrical roller bearings, single row NU1026ML
SKU:CYL000197
Cylindrical roller bearings, single row NU1026ML
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
130 mm
|
|
|---|---|---|
| D |
200 mm
|
|
| B |
33 mm
|
|
| D1 |
≈ 175.2 mm
|
|
| F |
148 mm
|
|
| r1,2 |
min. 2 mm
|
|
| r3,4 |
min. 1.1 mm
|
|
| s |
max. 4.7 mm
|
ABUTMENT DIMENSIONS
| da |
min. 137 mm
|
|
|---|---|---|
| da |
max. 145 mm
|
|
| db |
min. 151 mm
|
|
| Da |
max. 191 mm
|
|
| ra |
max. 2 mm
|
|
| rb |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
186 kN
|
|---|---|---|
| Basic static load rating | C0 |
224 kN
|
| Fatigue load limit | Pu |
25 kN
|
| Reference speed |
3 800 r/min
|
|
| Limiting speed |
5 600 r/min
|
|
| Calculation factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Axial load factor | Y |
0.6
|
MASS
| Mass bearing |
3.84 kg
|
|---|
