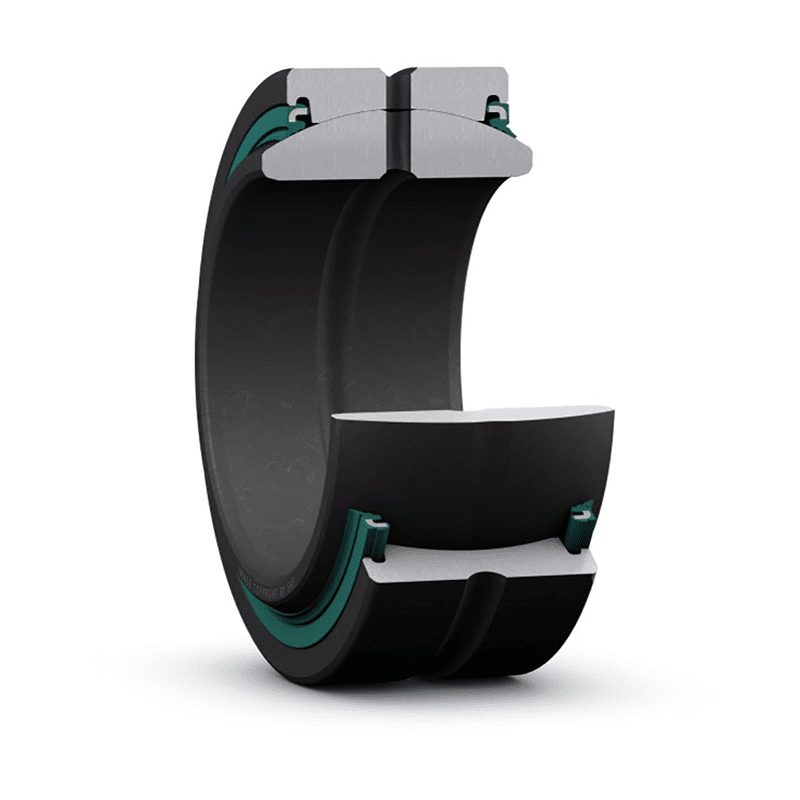

Radial spherical plain bearings GE17ES-2RS
SKU:BEA001514
Radial spherical plain bearings GE17ES-2RS
Manufacturer : SKF
Description
Technical specification
| Lubricant |
Regular relubrication – grease
|
|---|---|
| Design (sliding contact surface combination) |
Steel/steel
|
| Sealing solution |
Double-lip seals
|
DIMENSIONS
| d |
17 mm
|
|
|---|---|---|
| D |
30 mm
|
|
| B |
14 mm
|
|
| C |
10 mm
|
|
| α |
10 °
|
|
| dk |
25 mm
|
|
| b |
2.3 mm
|
|
| b1 |
2.4 mm
|
|
| M |
1.5 mm
|
|
| r1 |
min. 0.3 mm
|
|
| r2 |
min. 0.3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 19 mm
|
|
|---|---|---|
| da |
max. 20.7 mm
|
|
| Da |
min. 26 mm
|
|
| Da |
max. 28.3 mm
|
|
| ra |
max. 0.3 mm
|
|
| rb |
max. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
21.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
106 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Specific static load factor | K0 |
500 N/mm²
|
| Material constant | KM |
330
|
MASS
| Mass plain bearing |
0.05 kg
|
|---|
