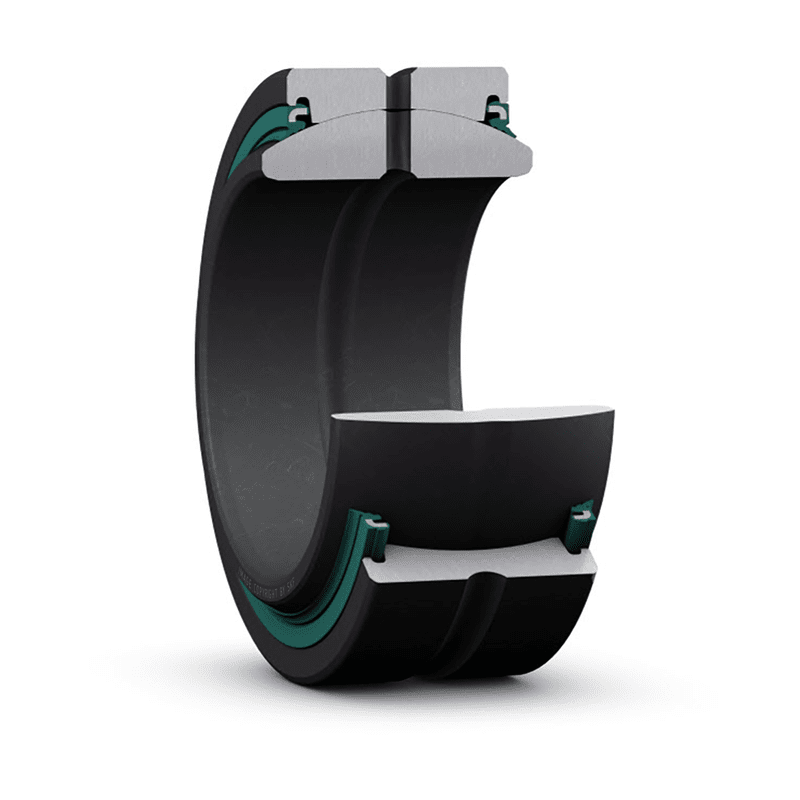

Radial spherical plain bearings GE20ES
SKU:SPH000045
Radial spherical plain bearings GE20ES
Manufacturer : SKF
Description
Technical specification
| Lubricant |
Regular relubrication – grease
|
|---|---|
| Design (sliding contact surface combination) |
Steel/steel
|
| Sealing solution |
No seals
|
DIMENSIONS
| d |
20 mm
|
|
|---|---|---|
| D |
35 mm
|
|
| B |
16 mm
|
|
| C |
12 mm
|
|
| α |
9 °
|
|
| dk |
29 mm
|
|
| b |
3.1 mm
|
|
| b1 |
3.2 mm
|
|
| M |
2 mm
|
|
| r1 |
min. 0.3 mm
|
|
| r2 |
min. 0.3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 22.1 mm
|
|
|---|---|---|
| da |
max. 24.2 mm
|
|
| Da |
min. 27.6 mm
|
|
| Da |
max. 33.2 mm
|
|
| ra |
max. 0.3 mm
|
|
| rb |
max. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
30 kN
|
|---|---|---|
| Basic static load rating | C0 |
146 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Specific static load factor | K0 |
500 N/mm²
|
| Material constant | KM |
330
|
MASS
| Mass plain bearing |
0.065 kg
|
|---|
