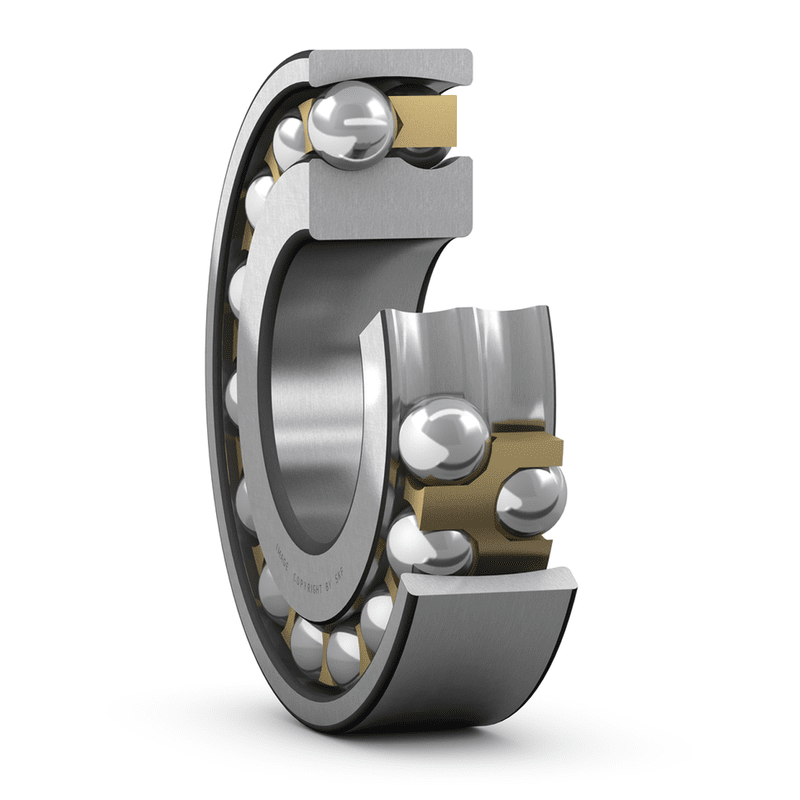

Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
120 mm
|
|
|---|---|---|
| D |
215 mm
|
|
| B |
42 mm
|
|
| d1 |
≈ 149 mm
|
|
| D1 |
≈ 187.2 mm
|
|
| C1 |
1.271 mm
|
|
| r1,2 |
min. 2.1 mm
|
|
|
Tapered bore, taper 1:12
|
ABUTMENT DIMENSIONS
| Da |
max. 203 mm
|
|
|---|---|---|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
119 kN
|
|---|---|---|
| Basic static load rating | C0 |
53 kN
|
| Fatigue load limit | Pu |
2.12 kN
|
| Reference speed |
6 300 r/min
|
|
| Limiting speed |
4 000 r/min
|
|
| Permissible angular misalignment | α |
2.5 °
|
| Calculation factor | kr |
0.04
|
| Calculation factor | e |
0.19
|
| Calculation factor | Y0 |
3.6
|
| Calculation factor | Y1 |
3.3
|
| Calculation factor | Y2 |
5.1
|
MASS
| Mass bearing |
6.5 kg
|
|---|
