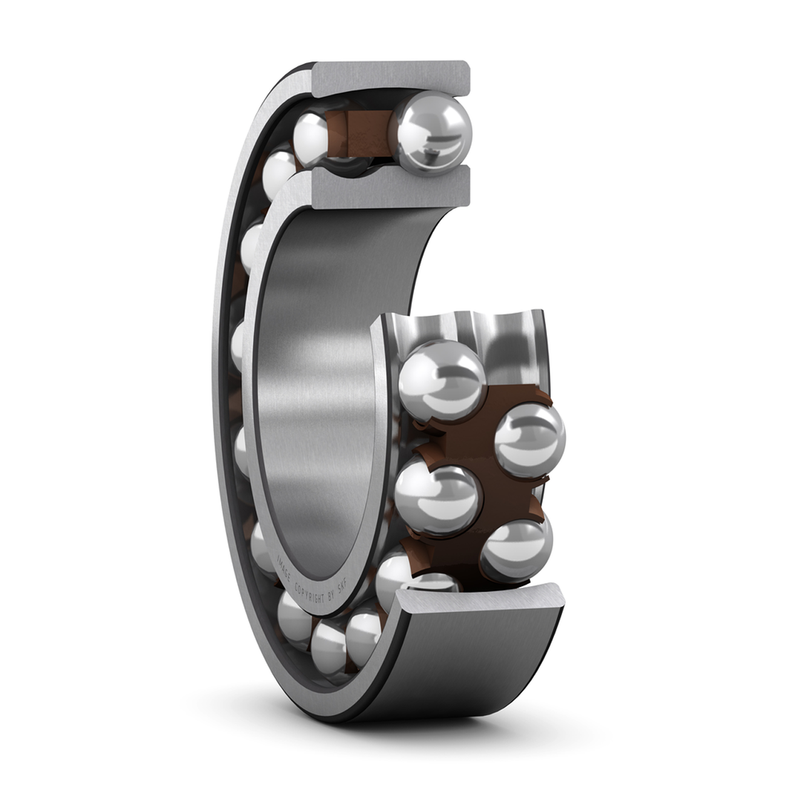

Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
9 mm
|
|
|---|---|---|
| D |
26 mm
|
|
| B |
8 mm
|
|
| d1 |
≈ 14.8 mm
|
|
| D1 |
≈ 20.4 mm
|
|
| r1,2 |
min. 0.3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 11.4 mm
|
|
|---|---|---|
| Da |
max. 23.6 mm
|
|
| ra |
max. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
3.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
0.815 kN
|
| Fatigue load limit | Pu |
0.043 kN
|
| Reference speed |
60 000 r/min
|
|
| Limiting speed |
38 000 r/min
|
|
| Permissible angular misalignment | α |
3 °
|
| Calculation factor | kr |
0.04
|
| Calculation factor | e |
0.33
|
| Calculation factor | Y0 |
2
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
3
|
MASS
| Mass bearing |
0.022 kg
|
|---|
