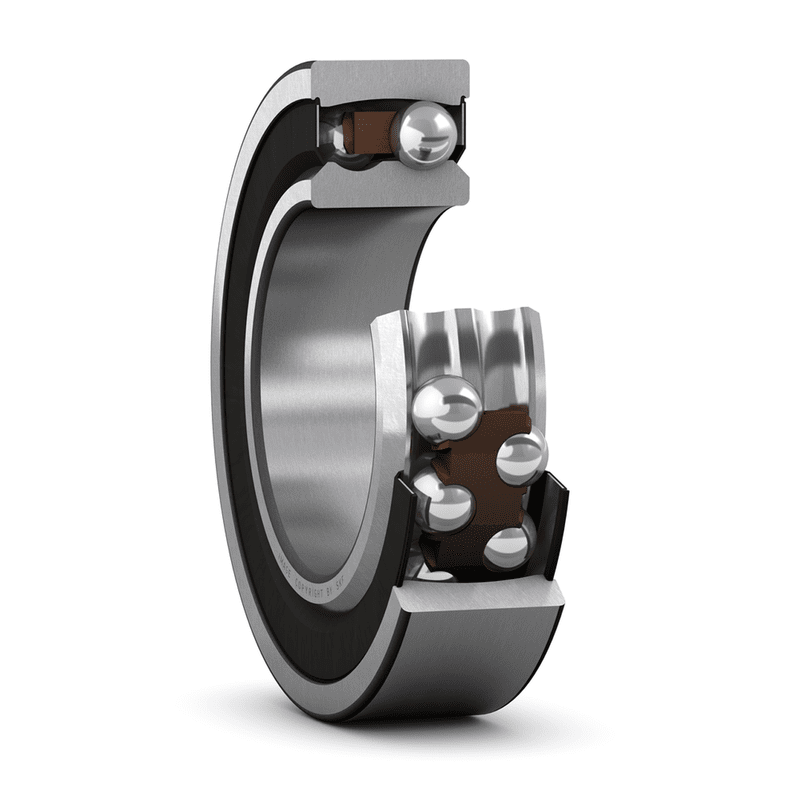

Self Aligning ball bearings 2210E2RS1TN9
SKU:SEL000026
Self-aligning ball bearings 2210E2RS1TN9
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
50 mm
|
|
|---|---|---|
| D |
90 mm
|
|
| B |
23 mm
|
|
| d2 |
≈ 57.7 mm
|
|
| D2 |
≈ 79.4 mm
|
|
| r1,2 |
min. 1.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 57 mm
|
|
|---|---|---|
| da |
max. 58 mm
|
|
| Da |
max. 83 mm
|
|
| ra |
max. 1.1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
22.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
8.15 kN
|
| Fatigue load limit | Pu |
0.415 kN
|
| Limiting speed |
4 800 r/min
|
|
| Permissible angular misalignment | α |
1.5 °
|
| Calculation factor | kr |
0.045
|
| Calculation factor | e |
0.2
|
| Calculation factor | Y0 |
3.2
|
| Calculation factor | Y1 |
3.2
|
| Calculation factor | Y2 |
4.9
|
MASS
| Mass bearing |
0.57 kg
|
|---|
