Self Aligning ball bearings 2213E2RS1TN9
SKU:SEL000025

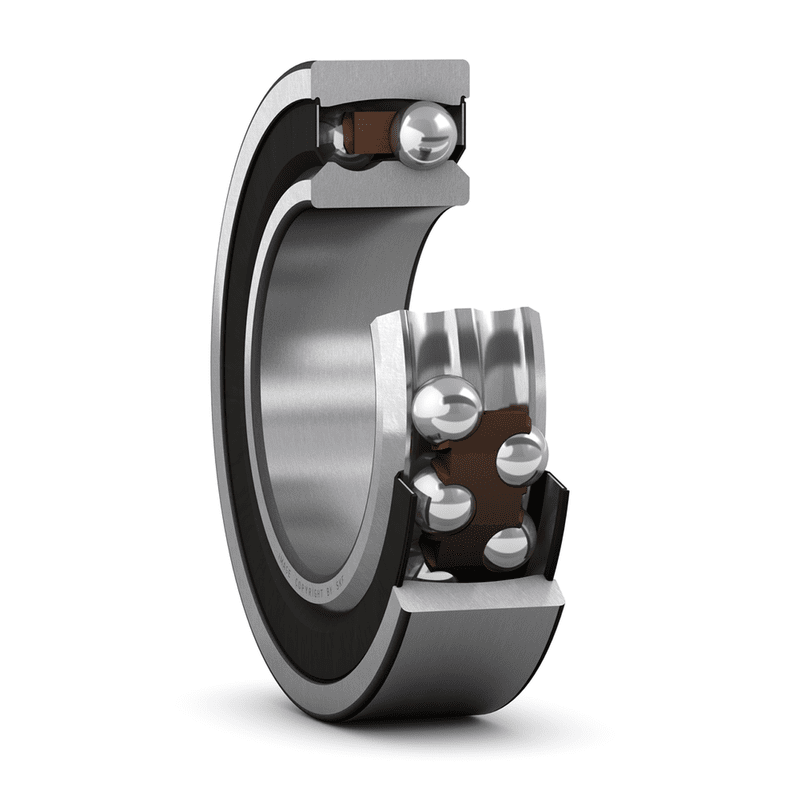

Self-aligning ball bearings 2213E2RS1TN9
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
65 mm
|
|
|---|---|---|
| D |
120 mm
|
|
| B |
31 mm
|
|
| d2 |
≈ 79.3 mm
|
|
| D2 |
≈ 105.8 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 74 mm
|
|
|---|---|---|
| da |
max. 79 mm
|
|
| Da |
max. 111 mm
|
|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
35.1 kN
|
|---|---|---|
| Basic static load rating | C0 |
14 kN
|
| Fatigue load limit | Pu |
0.72 kN
|
| Limiting speed |
3 600 r/min
|
|
| Permissible angular misalignment | α |
1.5 °
|
| Calculation factor | kr |
0.045
|
| Calculation factor | e |
0.18
|
| Calculation factor | Y0 |
3.6
|
| Calculation factor | Y1 |
3.5
|
| Calculation factor | Y2 |
5.4
|
MASS
| Mass bearing |
1.4 kg
|
|---|
