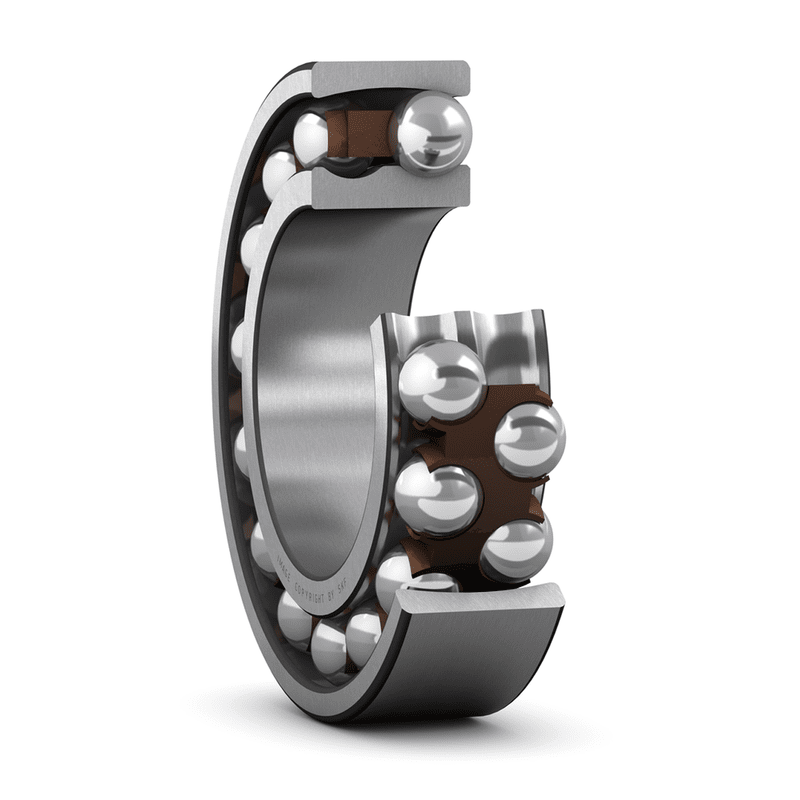

Self Aligning ball bearings 2213EKTN9/C3
SKU:SEL000007
Self-aligning ball bearings 2213EKTN9/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
65 mm
|
|
|---|---|---|
| D |
120 mm
|
|
| B |
31 mm
|
|
| d1 |
≈ 80.68 mm
|
|
| D1 |
≈ 105.5 mm
|
|
| r1,2 |
min. 1.5 mm
|
|
|
Tapered bore, taper 1:12
|
ABUTMENT DIMENSIONS
| Da |
max. 111 mm
|
|
|---|---|---|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
57.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
20 kN
|
| Fatigue load limit | Pu |
1.02 kN
|
| Reference speed |
10 000 r/min
|
|
| Limiting speed |
7 000 r/min
|
|
| Permissible angular misalignment | α |
2.5 °
|
| Calculation factor | kr |
0.045
|
| Calculation factor | e |
0.24
|
| Calculation factor | Y0 |
2.8
|
| Calculation factor | Y1 |
2.6
|
| Calculation factor | Y2 |
4.1
|
MASS
| Mass bearing |
1.4 kg
|
|---|
