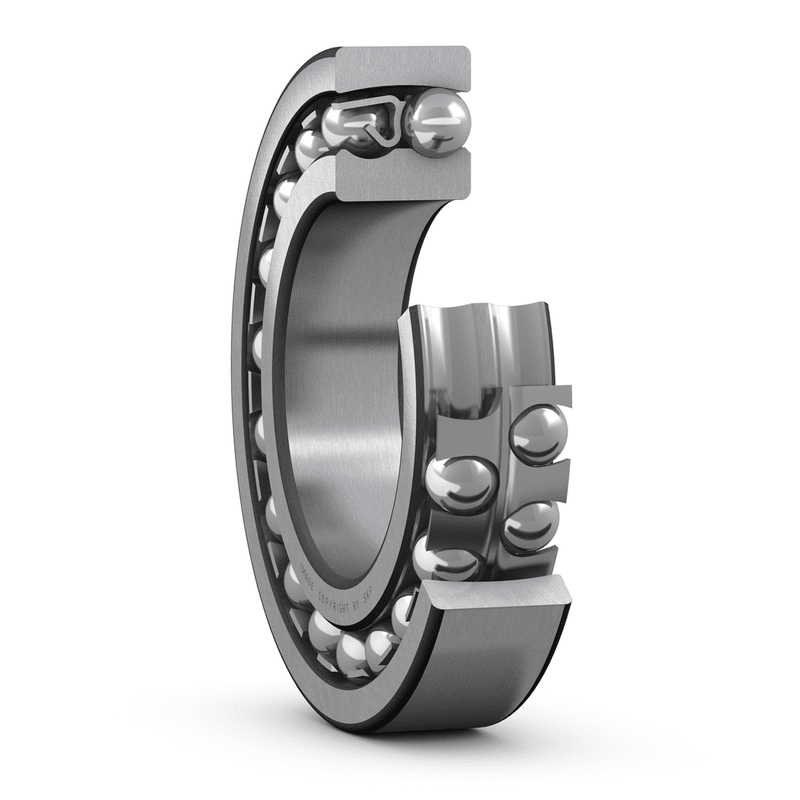

Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
55 mm
|
|
|---|---|---|
| D |
120 mm
|
|
| B |
43 mm
|
|
| d1 |
≈ 72 mm
|
|
| D1 |
≈ 101 mm
|
|
| r1,2 |
min. 2 mm
|
ABUTMENT DIMENSIONS
| da |
min. 66 mm
|
|
|---|---|---|
| Da |
max. 109 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
76.1 kN
|
|---|---|---|
| Basic static load rating | C0 |
24 kN
|
| Fatigue load limit | Pu |
1.25 kN
|
| Reference speed |
11 000 r/min
|
|
| Limiting speed |
7 500 r/min
|
|
| Permissible angular misalignment | α |
3 °
|
| Calculation factor | kr |
0.05
|
| Calculation factor | e |
0.4
|
| Calculation factor | Y0 |
1.6
|
| Calculation factor | Y1 |
1.6
|
| Calculation factor | Y2 |
2.4
|
MASS
| Mass bearing |
2.1 kg
|
|---|
