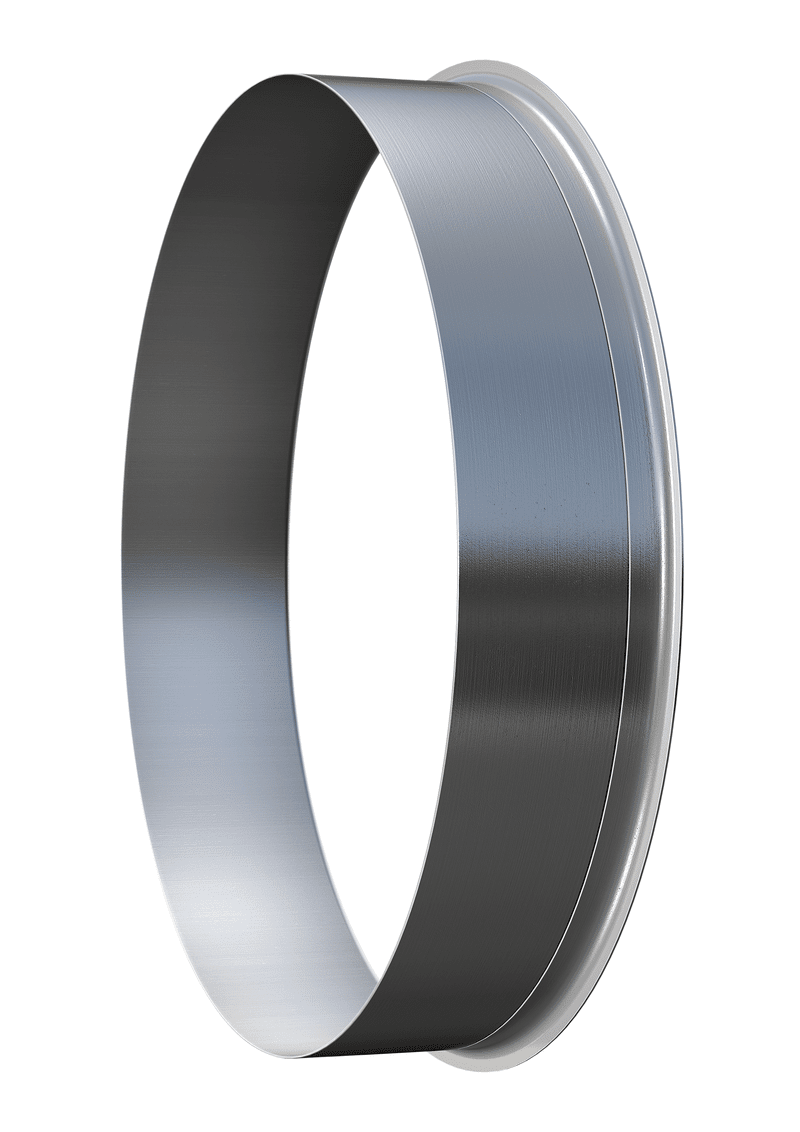

Wear sleeves, SKF Speedi-Sleeve 99289 Ø 74.93mm
SKU:SPE000007
SKF Speedi-Sleeve 99289 Ø 74.93mm
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d1 |
min. 74.93 mm
|
|
|---|---|---|
| d1 |
max. 75.108 mm
|
| d1 |
75 mm
|
|
|---|---|---|
| D |
83.134 mm
|
|
| Tolerance outside diameter D |
± 1.6 mm
|
|
| b |
17.526 mm
|
|
| Tolerance width b |
± 0.8 mm
|
|
| b1 |
15.088 mm
|
|
| Tolerance width b1 |
± 0.8 mm
|
|
| B |
max. 27.508 mm
|
|
| r |
max. 3.18 mm
|
