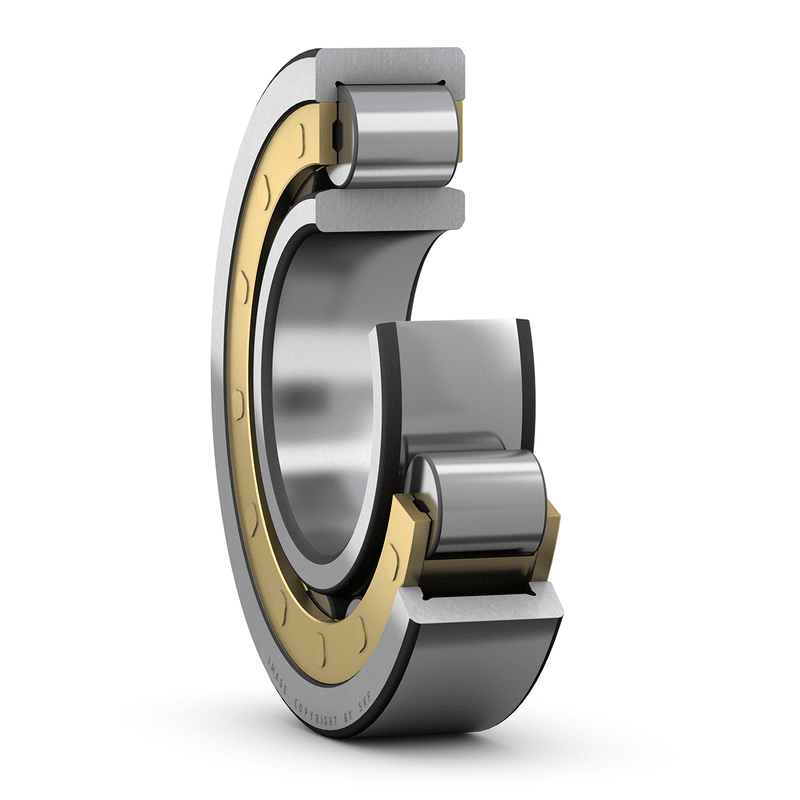

Cylindrical roller bearings, single row NU319ECM/C3
SKU:BEA000646
Cylindrical roller bearings, single row NU319ECM/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
95 mm
|
|
|---|---|---|
| D |
200 mm
|
|
| B |
45 mm
|
|
| D1 |
≈ 168.45 mm
|
|
| F |
121.5 mm
|
|
| r1,2 |
min. 3 mm
|
|
| r3,4 |
min. 3 mm
|
|
| s |
max. 2.9 mm
|
ABUTMENT DIMENSIONS
| da |
min. 110 mm
|
|
|---|---|---|
| da |
max. 118 mm
|
|
| db |
min. 125 mm
|
|
| Da |
max. 185 mm
|
|
| ra |
max. 2.5 mm
|
|
| rb |
max. 2.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
390 kN
|
|---|---|---|
| Basic static load rating | C0 |
390 kN
|
| Fatigue load limit | Pu |
46.5 kN
|
| Reference speed |
3 600 r/min
|
|
| Limiting speed |
4 300 r/min
|
|
| Calculation factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Axial load factor | Y |
0.6
|
MASS
| Mass bearing |
7.11 kg
|
|---|
