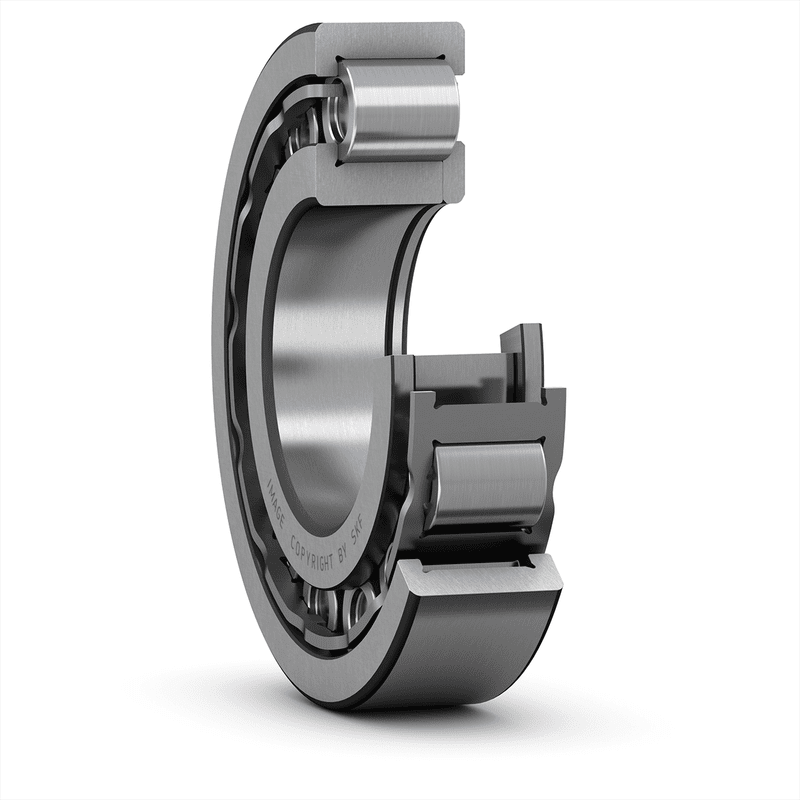

Cylindrical roller bearings, single row NUP210ECJ
SKU:CYL000118
Cylindrical roller bearings, single row NUP210ECJ
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
50 mm
|
|
|---|---|---|
| D |
90 mm
|
|
| B |
20 mm
|
|
| d1 |
≈ 64 mm
|
|
| D1 |
≈ 77.4 mm
|
|
| F |
59.5 mm
|
|
| r1,2 |
min. 1.1 mm
|
|
| r3,4 |
min. 1.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 57 mm
|
|
|---|---|---|
| db |
min. 66 mm
|
|
| Da |
max. 82.4 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
73.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
69.5 kN
|
| Fatigue load limit | Pu |
8.8 kN
|
| Reference speed |
8 500 r/min
|
|
| Limiting speed |
9 000 r/min
|
|
| Calculation factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Axial load factor | Y |
0.6
|
MASS
| Mass bearing |
0.52 kg
|
|---|
