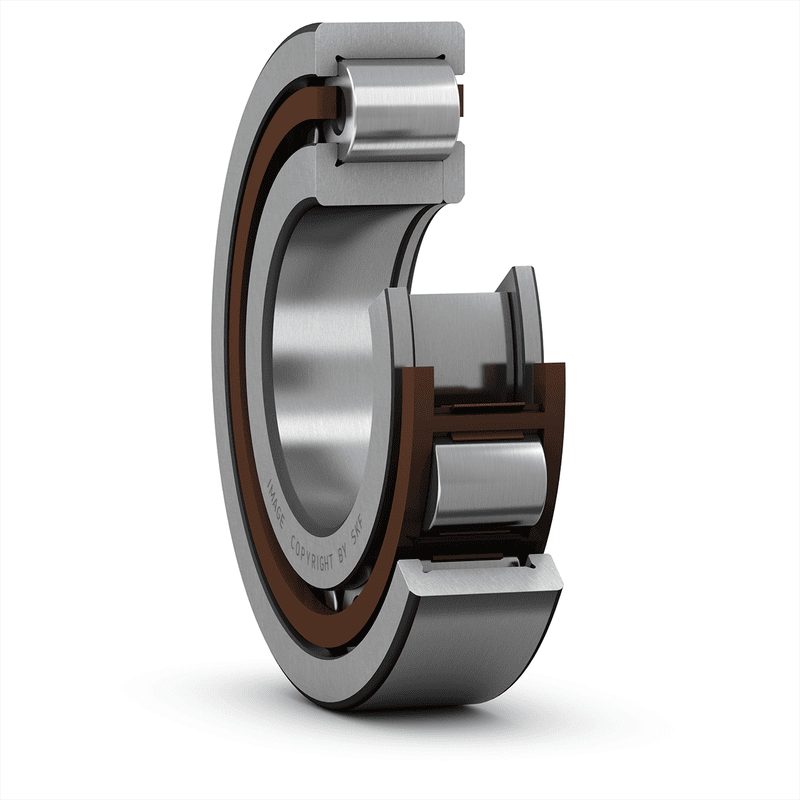

Cylindrical roller bearings, single row NUP2205ECP
SKU:BEA001541
Cylindrical roller bearings, single row NUP2205ECP
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
25 mm
|
|
|---|---|---|
| D |
52 mm
|
|
| B |
18 mm
|
|
| d1 |
≈ 34.7 mm
|
|
| D1 |
≈ 43.3 mm
|
|
| F |
31.5 mm
|
|
| r1,2 |
min. 1 mm
|
|
| r3,4 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 29.9 mm
|
|
|---|---|---|
| db |
min. 36 mm
|
|
| Da |
max. 46.4 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
39 kN
|
|---|---|---|
| Basic static load rating | C0 |
34 kN
|
| Fatigue load limit | Pu |
4.25 kN
|
| Reference speed |
15 000 r/min
|
|
| Limiting speed |
16 000 r/min
|
|
| Calculation factor | kr |
0.2
|
| Limiting value | e |
0.3
|
| Axial load factor | Y |
0.4
|
MASS
| Mass bearing |
0.17 kg
|
|---|
