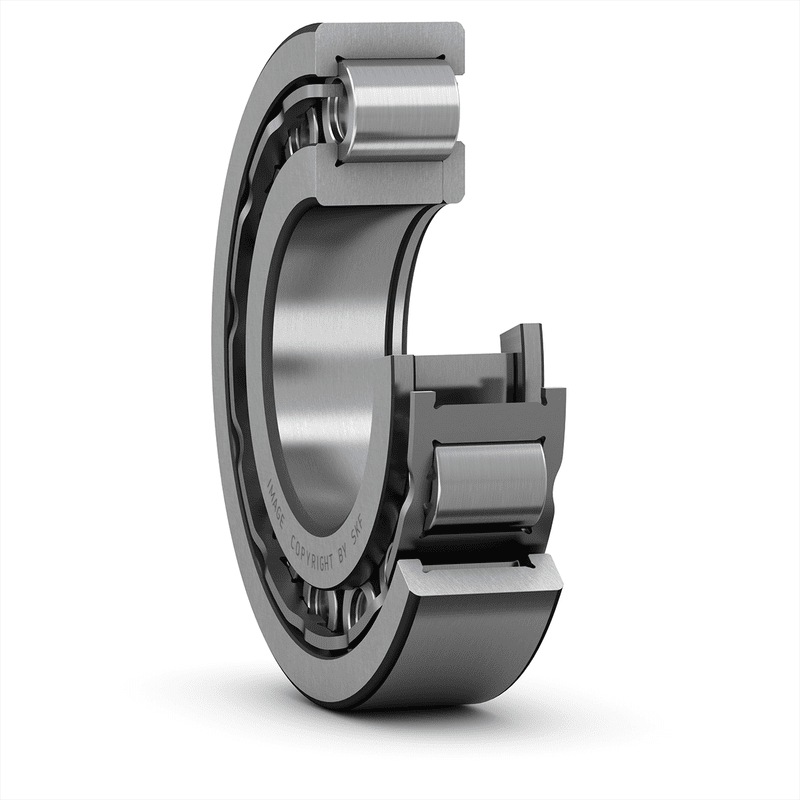

Cylindrical roller bearings, single row NUP317ECJ
SKU:BEA001670
Cylindrical roller bearings, single row NUP317ECJ
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
85 mm
|
|
|---|---|---|
| D |
180 mm
|
|
| B |
41 mm
|
|
| d1 |
≈ 117 mm
|
|
| D1 |
≈ 151.4 mm
|
|
| F |
108 mm
|
|
| r1,2 |
min. 3 mm
|
|
| r3,4 |
min. 3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 99 mm
|
|
|---|---|---|
| db |
min. 120 mm
|
|
| Da |
max. 165.5 mm
|
|
| ra |
max. 2.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
340 kN
|
|---|---|---|
| Basic static load rating | C0 |
335 kN
|
| Fatigue load limit | Pu |
41.5 kN
|
| Reference speed |
4 000 r/min
|
|
| Limiting speed |
4 800 r/min
|
|
| Calculation factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Axial load factor | Y |
0.6
|
MASS
| Mass bearing |
4.95 kg
|
|---|
