| Suitable for SKF nuts of series | |||||||
| KM | N | AN | KMK | KMFE | KMT | DIN 1804 (M) | |
| HN 0 | 0 | 0 | 0 | M6x0,75, M8x1 |
|||
| HN 1 | 1 | 1 | 1 | M8x1 | |||
| HN 2-3 | 2, 3 | 2, 3 | 2, 3 |
0 | M10x1, M12x1,5 |
||
| HN 4 | 4 | 4 | 4 | 4 | 1, 2 | M14x1,5, M16x1,5 |
|
| HN 5-6 | 5, 6 | 5, 6 | 5, 6 | 5, 6 | 3, 4, 5 | M22x1,5, M24x1,5, M26x1,5 |
|
| HN 7 | 7 | 7 | 7 | 7 | 6, 7 | M32x1,5, M35x1,5 |
|
| HN 8-9 | 8, 9 | 8, 9 | 8, 9 | 8, 9 | 8 | M38x1,5, M40x1,5, M42x1,5 |
|
| HN 10-11 | 10, 11 | 10, 11 | 10, 11 | 10, 11 | 9, 10 | M45x1,5, M48x1,5, M50x1,5 |
|
| HN 12-13 | 12, 13 | 12, 13 | 12, 13 | 12, 13 | 11, 12 | M52x1,5, M55x1,5, M58x1,5, M60x1,5 |
|
| HN 14 | 14 | 14 | 14 | 14 | 14 | ||
| HN 15 | 15 | 15 | 15 | 15 | 13, 14 | M62x1,5, M65x1,5, |
|
| M68x1,5, M70x1,5 |
|||||||
| HN 16 | 16 | 16 | 16 | 16 | 15 | ||
| HN 17 | 17 | 17 | 17 | 17 | 16 | M72x1,5, M75x1,5, M80x2 |
|
| HN 18-20 | 18, 19, 20 | 18, 19, 20 | 18, 19, 20 | 18, 19, 20 | 17, 18, 19 | M85x2, M90x2 |
|
| HN 21-22 | 21, 22 | 22 | 21, 22 | 21, 22 | 20, 22 | M95x2, M100x2 |
|

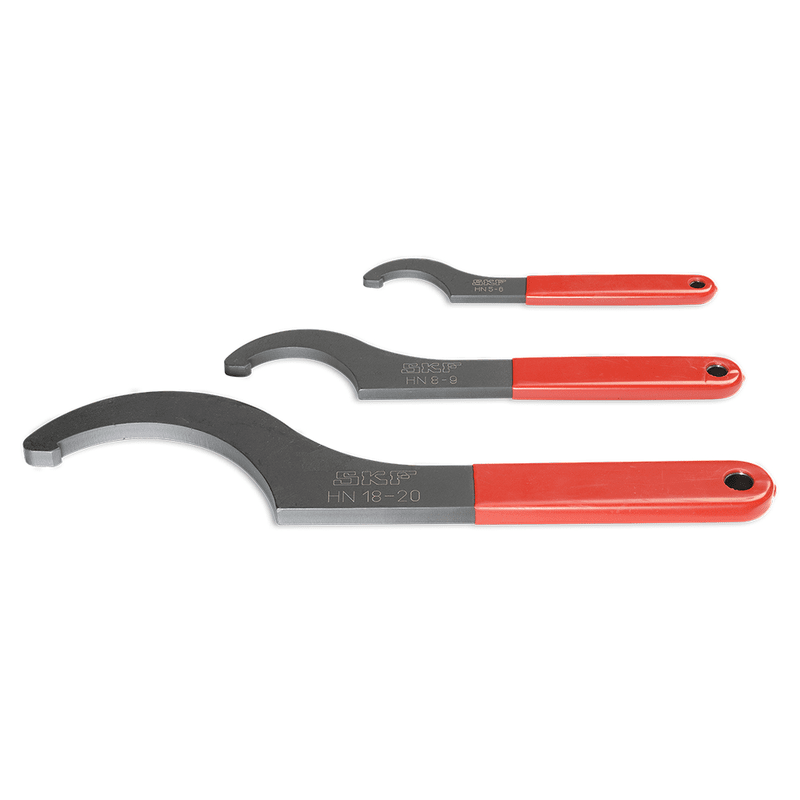

Hook Spanner HN18-20
SKU:HOO000003
Hook Spanner HN18-20
The HN series includes 15 different size hook spanners based on the DIN 1810 standard. The hook spanners are designed for use with SKF KM nuts as well as any other KM nuts conforming to the DIN 981 standard. Additionally, they are suitable for use with N, AN, KMK, KMFE and KMT as well as nuts manufactured according to the DIN 1804 standard.
Manufacturer : SKF
Description
Exact spanner radius reduces the risk of nut damage
- Minimises the risk of shaft and nut damage
- Plastic handle is oil, grease and dirt resistant to provide a better grip
- The plastic handle minimises direct metal to skin contact, reducing the risk of corrosion in the handle area
- Hole in the spanner's handle facilitates easy storage
- Designation of spanner representing its size is laser-engraved allowing easy identification and selection
| Designation |
Spanner design DIN 1810 |
Outer diameter lock nut |
|
| mm | mm | in. | |
| HN 0 | 16–20 | 0.6–0.8 | |
| HN 1 | Ø20–Ø22 | 20–22 | 0.8–0.9 |
| HN 2-3 | Ø25–Ø28 | 25–28 | 1.0–1.1 |
| HN 4 | Ø30–Ø32 | 30–32 | 1.2–1.3 |
| HN 5-6 | 38–45 | 1.5–1.8 | |
| HN 7 | Ø52–Ø55 | 52–55 | 2.0–2.2 |
| HN 8-9 | 58–65 | 2.3–2.6 | |
| HN 10-11 | Ø68–Ø75 | 68–75 | 2.7–3.0 |
| HN 12-13 | Ø80–Ø90 | 80–90 | 3.1–3.5 |
| HN 14 | 92 | 3.6 | |
| HN 15 | Ø95–Ø100 | 95–100 | 3.7–3.9 |
| HN 16 | 105 | 4.1 | |
| HN 17 | Ø110–Ø115 | 110–115 | 4.3–4.5 |
| HN 18-20 | Ø120–Ø130 | 120–130 | 4.7–5.1 |
| HN 21-22 | Ø135–Ø145 | 135–145 | |
