| Suitable for SKF nuts of series | |||||||
| KM |
N |
AN |
KMK |
KMFE |
KMT |
DIN 1804 (M) | |
| HN 4 | 4 | 4 | 4 | 4 | 1, 2 | M14x1,5, M16x1,5 |
|
| HN 5-6 | 5, 6 | 5, 6 | 5, 6 | 5, 6 | 3, 4, 5 | M22x1,5, M24x1,5, M26x1,5 |
|
| HN 7 | 7 | 7 | 7 | 7 | 6, 7 |
M32x1,5, M35x1,5 |
|
| HN 8-9 | 8, 9 | 8, 9 | 8, 9 | 8, 9 | 8 | M38x1,5, M40x1,5, M42x1,5 |
|
| HN 10-11 | 10, 11 | 10, 11 | 10, 11 | 10, 11 | 9, 10 | M45x1,5, M48x1,5, M50x1,5 |
|
| HN 12-13 | 12, 13 |
12, 13 |
12, 13 |
12, 13 |
11, 12 |
M52x1,5, M55x1,5, M58x1,5, M60x1,5 |
|
| HN 14 | 14 | 14 | 14 | 14 | |||
| HN 15 | 15 | 15 | 15 | 15 | 13, 14 | M62x1,5, M65x1,5 M68x1,5, M70x1,5 |
|
| HN 16 | 16 | 16 | 16 | 16 | 15 | ||

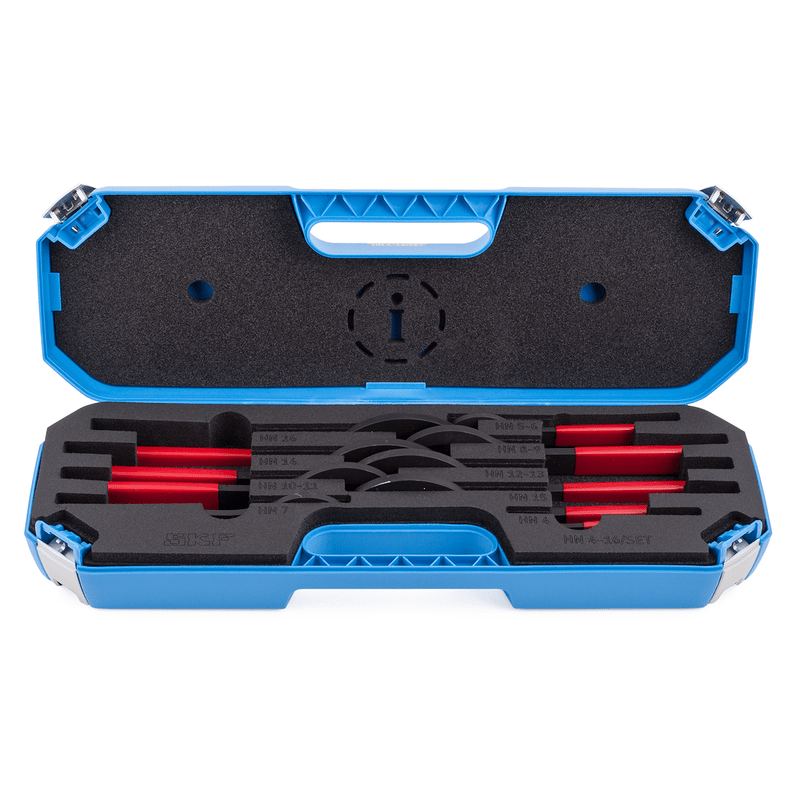

Hook Spanner HN4-16/SET
SKU:HOO000002
Hook Spanner HN4-16/SET
Most popular hook spanner sizes combined in one set
The SKF HN 4-16/SET contains 9 spanners based on the DIN 1810 standard suitable for tightening and loosening lock nut sizes 4 up to 16. The hook spanners are designed for use with SKF KM nuts as well as any other KM nuts conforming to the DIN 981 standard. Additionally, they are suitable for use with N, AN, KMK, KMFE and KMT as well as nuts manufactured according to the DIN 1804 standard.
Contains hook spanners HN 4 up and including HN 16
9 different spanner sizes for the most popular lock nut sizes
Easy selection of the right size spanner
Supplied in a sturdy carrying case
Manufacturer : SKF
Description
Hook spanner set
| Designation |
Spanner design DIN 1810 |
Outer diameter lock nut |
|
| mm | mm | in. | |
| HN 4 | Ø30–Ø32 | 30–32 | 1.2–1.3 |
| HN 5-6 | 38–45 | 1.5–1.8 | |
| HN 7 | Ø52–Ø55 | 52–55 | 2.0–2.2 |
| HN 8-9 | 58–65 | 2.3–2.6 | |
| HN 10-11 | Ø68–Ø75 | 68–75 | 2.7–3.0 |
| HN 12-13 | Ø80–Ø90 | 80–90 | 3.1–3.5 |
| HN 14 | 92 | 3.6 | |
| HN 15 | Ø95–Ø100 | 95–100 | 3.7–3.9 |
| HN 16 | 105 | 4.1 | |
| Designation | Description |
| TDTC 1/X | Toolcase without inlay |
