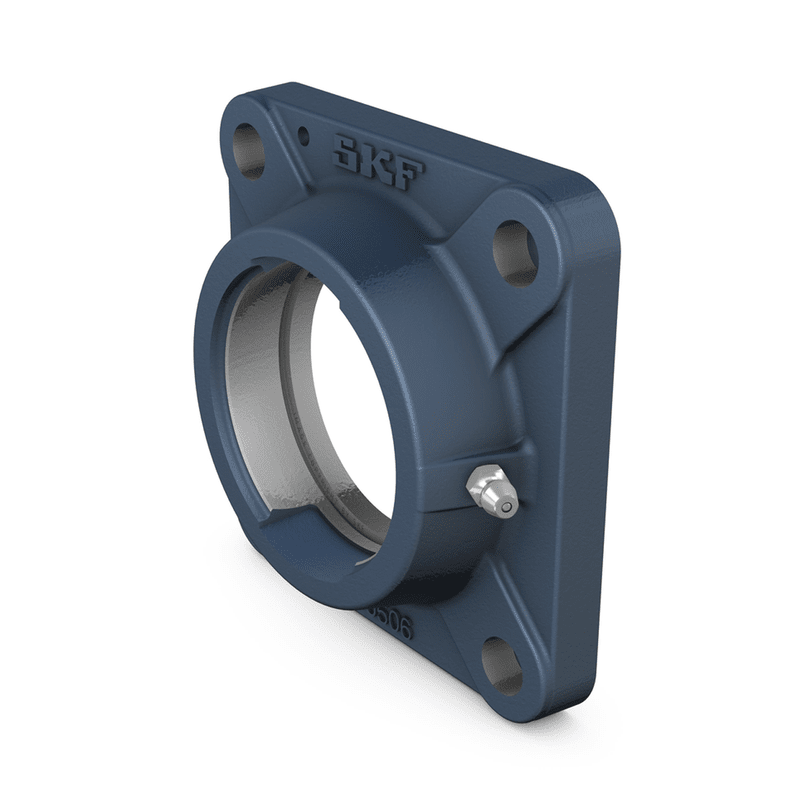

Description
Technical specification
| Material |
Cast iron
|
|---|
DIMENSIONS
| Da |
90 mm
|
|
|---|---|---|
| Db1 |
107 mm
|
|
| Db2 |
118 mm
|
|
| Dc |
125.4 mm
|
|
| A |
43 mm
|
|
| A1 |
15 mm
|
|
| A2 |
28 mm
|
|
| A3 |
3.2 mm
|
|
| A5 |
33 mm
|
|
| J |
111 mm
|
|
| L |
143 mm
|
|
| N |
18 mm
|
| RG |
1/4-28 UNF
|
|
|---|---|---|
| R1 |
28.5 mm
|
| DN |
6.5 mm
|
|
|---|---|---|
| SWN |
7 mm
|
|
| GN |
1/4-28 SAE-LT
|
| J6 |
129 mm
|
|
|---|---|---|
| J7 |
35.5 mm
|
|
| N4 |
4 mm
|
MASS
| Mass housing |
1.5 kg
|
|---|
MOUNTING INFORMATION
| Recommended diameter for attachment bolts, mm | G |
16 mm
|
|---|---|---|
| Recommended diameter for attachment bolts, inch | G |
0.625 in
|
