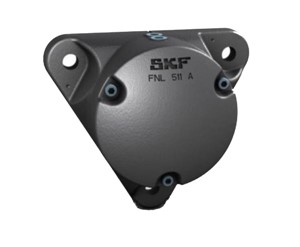

Description
INCLUDED PRODUCTS
| Contact seal |
TFL 511
|
|---|
DIMENSIONS
| da |
50 mm
|
|
|---|---|---|
| Ca |
27 mm
|
|
| Da |
100 mm
|
|
| A |
56 mm
|
|
| A1 |
15 mm
|
|
| AA |
84 mm
|
|
| Ba |
24 mm
|
|
| Bb |
23 mm
|
|
| D |
127 mm
|
|
| H |
172.5 mm
|
|
| H1 |
65 mm
|
|
| J |
170 mm
|
|
| L |
192 mm
|
|
| N |
14 mm
|
| J1 |
77 mm
|
|
|---|---|---|
| J2 |
21 mm
|
|
| J3 |
57 mm
|
|
| J4 |
56 mm
|
|
| J5 |
21 mm
|
|
| J6 |
77 mm
|
|
| N4 |
max. 6 mm
|
BREAKING LOADS, HOUSING
| P1 |
110 kN
|
|
|---|---|---|
| P2 |
80 kN
|
|
| P3 |
110 kN
|
MASS
| Mass housing |
4.3 kg
|
|---|
MOUNTING INFORMATION
| Cover bolt, size |
3 x M 6x20
|
|
|---|---|---|
| Cover bolt, rec. tightening torque |
10 N·m
|
|
| Appropriate attachment bolt, size | G |
12 mm
|
| Appropriate attachment bolt, rec. tightening torque |
80 N·m
|
|
| Initial grease fill, 20% |
40 g
|
|
| Initial grease fill, 40% |
60 g
|
