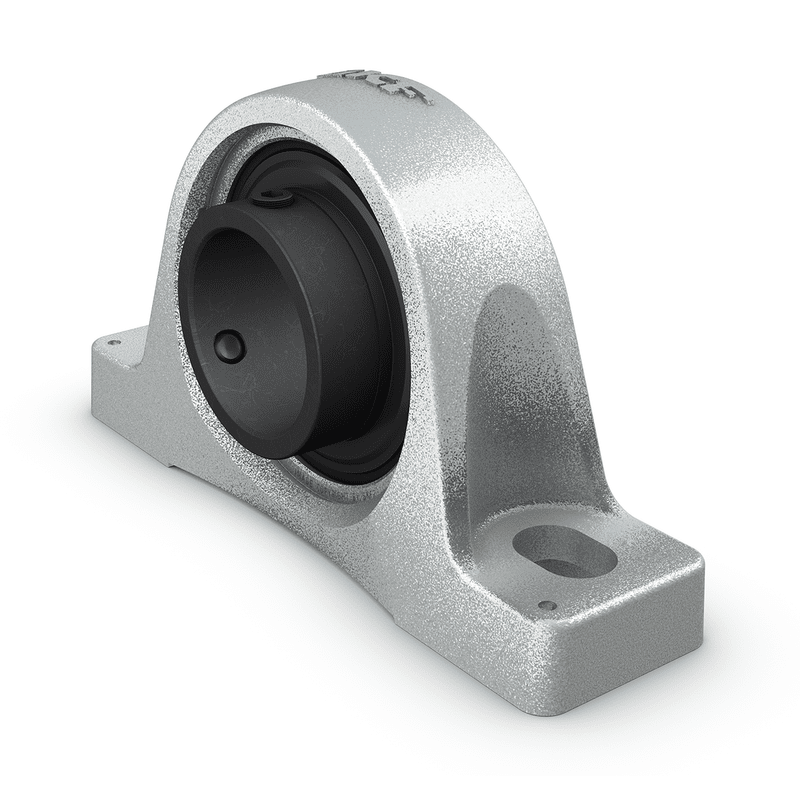

Description
Technical specification
| Compliance with standard |
ISO
|
|---|---|
| Purpose specific |
For material handling applications
|
| Housing material |
Cast iron
|
| Sealing solution |
Standard seals with additional flingers
|
DIMENSIONS
| d |
61.913 mm
|
|
|---|---|---|
| d1 |
≈ 75.64 mm
|
|
| A |
60 mm
|
|
| A1 |
42 mm
|
|
| A5 |
39 mm
|
|
| B |
65.1 mm
|
|
| B4 |
10 mm
|
|
| H |
69.9 mm
|
|
| H1 |
26.5 mm
|
|
| H2 |
137.5 mm
|
|
| J |
190.5 mm
|
|
| J |
max. 202 mm
|
|
| J |
min. 179 mm
|
|
| L |
240 mm
|
|
| N |
18 mm
|
|
| N1 |
29.5 mm
|
|
| s1 |
39.7 mm
|
| RG |
1/4-28 UNF
|
|
|---|---|---|
| R1 |
5.5 mm
|
|
| Rα |
45 °
|
| DN |
6.5 mm
|
|
|---|---|---|
| SWN |
7 mm
|
|
| GN |
1/4-28 SAE-LT
|
| J6 |
222 mm
|
|
|---|---|---|
| J7 |
21 mm
|
|
| N4 |
4 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
52.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
36 kN
|
| Fatigue load limit | Pu |
1.53 kN
|
| Limiting speed |
3 400 r/min
|
|
|
with shaft tolerance h6
|
MASS
| Mass bearing unit |
4.3 kg
|
|---|
MOUNTING INFORMATION
| Set screw | G2 |
3/8-24 UNF
|
|---|---|---|
| Hexagonal key size for set screw | N |
4.763 mm
|
| Recommended tightening torque for set screw |
16.5 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
16 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.625 in
|
