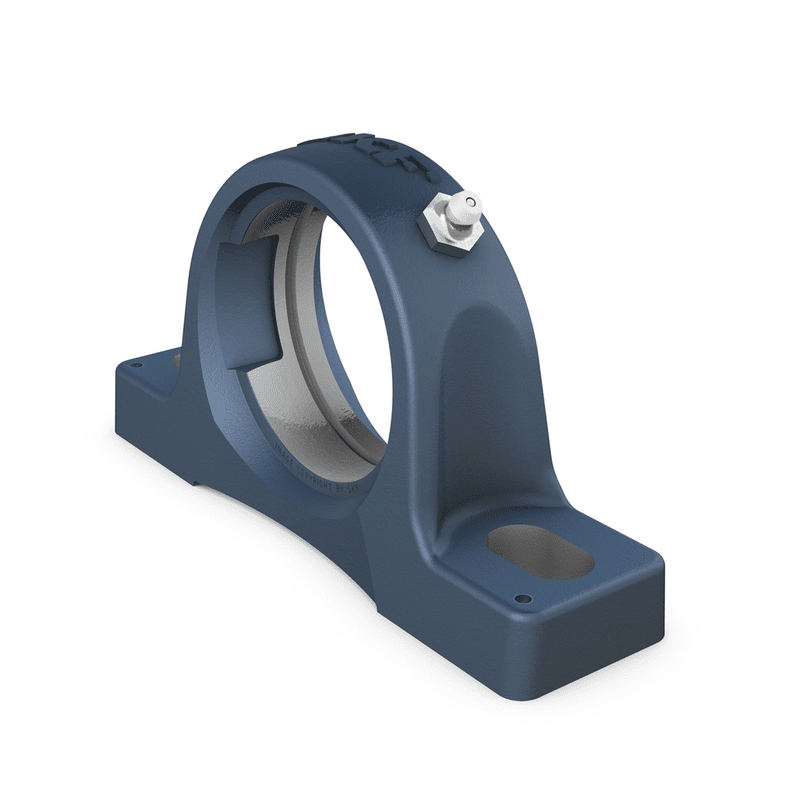

Description
Technical specification
| Material |
Cast iron
|
|---|
DIMENSIONS
| Da |
85 mm
|
|
|---|---|---|
| A |
48 mm
|
|
| A1 |
32 mm
|
|
| A5 |
26.5 mm
|
|
| H |
54 mm
|
|
| H1 |
21 mm
|
|
| H2 |
107 mm
|
|
| J |
143.5 mm
|
|
| J |
max. 152 mm
|
|
| J |
min. 135 mm
|
|
| L |
187 mm
|
|
| N |
14 mm
|
|
| N1 |
22.5 mm
|
| RG |
1/4-28 UNF
|
|
|---|---|---|
| R1 |
4 mm
|
|
| Rα |
45 °
|
| DN |
6.5 mm
|
|
|---|---|---|
| SWN |
7 mm
|
|
| GN |
1/4-28 SAE-LT
|
| J6 |
173 mm
|
|
|---|---|---|
| J7 |
17 mm
|
|
| N4 |
4 mm
|
MASS
| Mass housing |
1.5 kg
|
|---|
MOUNTING INFORMATION
| Recommended diameter for attachment bolts, mm | G |
12 mm
|
|---|---|---|
| Recommended diameter for attachment bolts, inch | G |
0.5 in
|
